Sunon

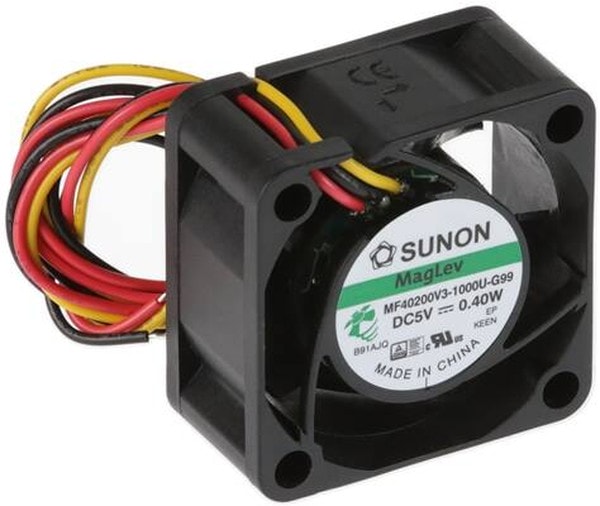

8005863185 MF40200V3-1000U-G99, Fan Tubeaxial 5VDC Square — 40mm L x 40mm H Vapo-Bearing™ 6.3 CFM (0.176m³/min) 3 Wire Leads Hirschmann
1960,00 ₽
Описание
Fan Tubeaxial 5VDC Square — 40mm L x 40mm H Vapo-Bearingв„ў 6.3 CFM (0.176mВі/min) 3 Wire Leads
| Потребляемая мощность, Вт | 380 |
| Fan Type | Tubeaxial |
| Series | MagLevВ® MF-> |
| Тип подшипника | Vapo-Bearingв(ў |
| Размеры рамы,мм | 40×40 |
| Рабочее напряжение,В | 5 |
| Питание | 3pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart, Speed Sensor(Tach) |
| Noise | 16.5dB(A) |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-40mm L x 40mm H |
| Termination | 3 Wire Leads |
| Weight | 0.064 lb(29.03 g) |
| Width | 20.00mm |
| Current Rating (Amps) | 0.075A |
| Static Pressure | 0.11 in H2O(27.4 Pa) |
| Частота вращения,об./мин. | 5000 |
| Производительность,м.куб./мин. | 6.3 |
| Video File | Sunon Demonstrates the Autorestart and Reverse Air |
| Voltage Range | 3.5 ~ 6VDC |
| Environmental Information | http://www.sunon.com/uFiles/file/01_about%20sunon/ |
Детали
| Бренд | Sunon |
|---|
