Orion Fans

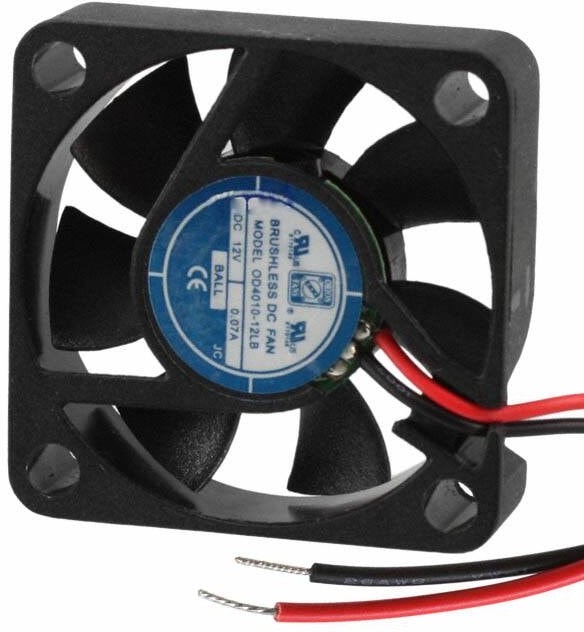

8005867899 OD4010-12LB, FAN AXIAL 40X10.5MM 12VDC WIRE Hirschmann
2820,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 40mm L x 40mm H Ball 5.0 CFM (0.140mВі/min) 2 Wire Leads
| Fan Type | Tubeaxial |
| Series | OD4010-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 40×40 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 10 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Noise | 14.0dB |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 45В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | -4 ~ 176В°F(-20 ~ 80В°C) |
| Size / Dimension | Square-40mm L x 40mm H |
| Termination | 2 Wire Leads |
| Width | 10.50mm |
| Current Rating (Amps) | 0.060A |
| Static Pressure | 0.06 in H2O(14.9 Pa) |
| Частота вращения,об./мин. | 4200 |
| Производительность,м.куб./мин. | 5 |
| Шум, дБA | 14 |
| Voltage Range | 7 ~ 14VDC |
Детали
| Бренд | Orion Fans |
|---|
