Delta Electonics

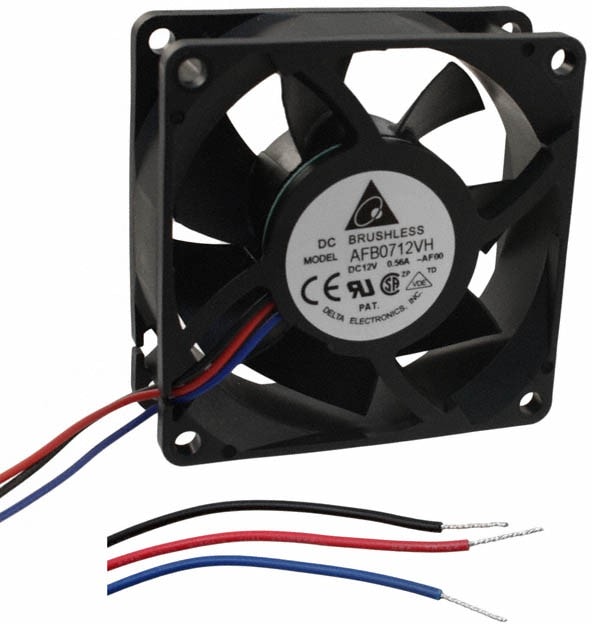

8005876210 AFB0712VH-AF00, Fan Tubeaxial 12VDC Square — 70mm L x 70mm H Ball 52.0 CFM (1.46m³/min) 3 Wire Leads Hirschmann
2580,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 70mm L x 70mm H Ball 52.0 CFM (1.46m³/min) 3 Wire Leads
| Вес, г | 90 |
| Air Flow | 52 CFM(1.46m³/min) |
| Fan Type | Tubeaxial |
| Размеры рамы,мм | 70×70 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 25 |
| Питание | 3pin |
| Features | Locked Rotor Protection, Speed Sensor(Tach) |
| Noise | 47.5dB(A) |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F(-10 ~ 70°C) |
| Termination | 3 Wire Leads |
| Width | 25.40mm |
| Static Pressure | 0.433 in H2O(107.9 Pa) |
| Bearing Type | Ball |
| Power (Watts) | 5.28 W |
| RPM | 5500 RPM |
| Voltage — Rated | 12VDC |
Детали
| Бренд | Delta Electonics |
|---|
