Sanyo Denki

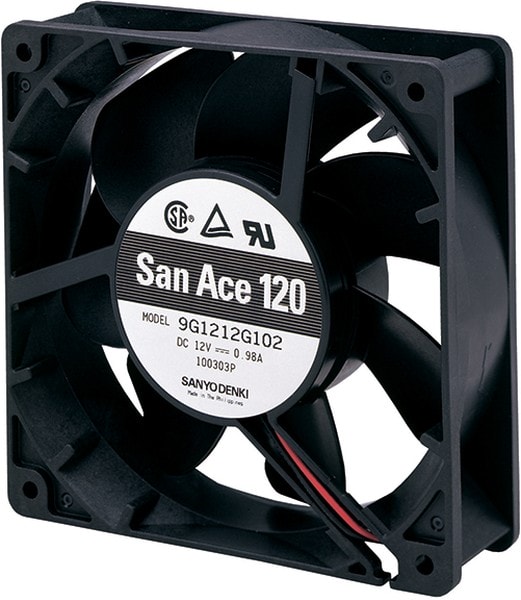

8005907367 9G1212H1011, Fan Tubeaxial 12VDC Square — 119mm L x 119mm H Ball 99.0 CFM (2.77m³/min) 3 Wire Leads Hirschmann
3260,00 ₽
Описание
Our DC cooling fans have features such as high airflow, high reliability, and low noise. They can be used in a wide-ranging applications including servers and ICT equipment.
| Air Flow | 168.2m³/h |
| Mounting | Flange Mount |
| Noise Level | 39dB(A) |
| Series | 9G Type |
| Supply Voltage | 12 V dc |
| Размеры рамы,мм | 119×119 |
| Рабочее напряжение,В | 12 |
| Питание | 3pin |
| Brand | Sanyo Denki |
| Manufacturer | Sanyo Denki |
| Packaging | Bulk |
| Product Category | DC Fan |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| Features | Tachometer |
| Airflow | 98.9 CFM(2.8 m3/min) |
| Current Type | DC |
| Depth | 38 mm |
| Factory Pack Quantity: Factory Pack Quantity | 21 |
| Noise | 39 dBA |
| Operating Supply Voltage | 12 VDC |
| Power Rating | 4.56 W |
| Termination Style | Wire Leads-3 |
| Type | Axial |
| Width | 119mm |
| Housing Material | Plastic |
| Power consumption | 4.56W |
| speed | 2600 RPM |
| Bearing Type | Ball |
| Part # Aliases | 2138416 96M7350 |
| Pressure Type | 7.1 mmAq |
| Tradename | San Ace 120 |
| AC or DC Operation | DC |
| Maximum Current | 380mA |
| Sensor Type | Pulse |
| Termination Type | Lead Wire |
| Automotive | Unknown |
| Part Status | NRND |
| PPAP | Unknown |
| ECCN (US) | 4A994 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Pressure | 0.283inH2O |
| Minimum Operating Temperature (°C) | -10 |
| Shape | Square |
| Compliance | CSA; TUV; UL |
| Size (Metric) (mm) | 120 X 120 X 38 |
| Voltage Rating (V) | 12 |
| Power Rating (W) | 4.56 |
| Nominal Speed (r/min) | 2600 |
| Maximum Airflow (CFM) | 99 |
| Noise Level (dB) | 39 |
| Bearings | Ball |
| Line Current (A) | 0.38 |
| Operating Input Voltage Range (V) | 7 to 13.8 |
Детали
| Бренд | Sanyo Denki |
|---|
