NMB Technologies

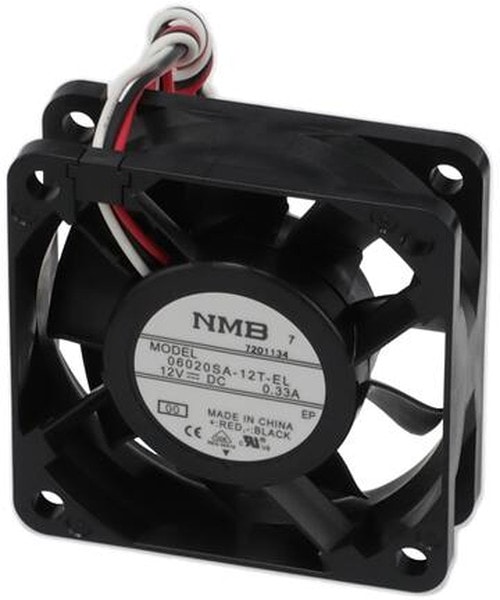

8005920656 06020SA-12T-EL-00, Fan Tubeaxial 12VDC Square — 60mm L x 60mm H Ball 30.4 CFM (0.851m³/min) 3 Wire Leads Hirschmann
2840,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 60mm L x 60mm H Ball 30.4 CFM (0.851mВі/min) 3 Wire Leads
| Потребляемая мощность, Вт | 2.88 |
| Fan Type | Tubeaxial |
| Series | 06020SA-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 60×60 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 20 |
| Питание | 3pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Box |
| Features | Auto Restart, Locked Rotor Sensor |
| Noise | 42.5dB |
| Lifetime @ Temp. | 40000 Hrs @ 60В°C |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-60mm L x 60mm H |
| Termination | 3 Wire Leads |
| Width | 20.00mm |
| Current Rating (Amps) | 0.240A |
| Static Pressure | 0.44 in H2O(109.6 Pa) |
| Частота вращения,об./мин. | 6400 |
| Производительность,м.куб./мин. | 30.4 |
| Voltage Range | 6 ~ 13.8VDC |
Детали
| Бренд | NMB Technologies |
|---|
