Orion Fans

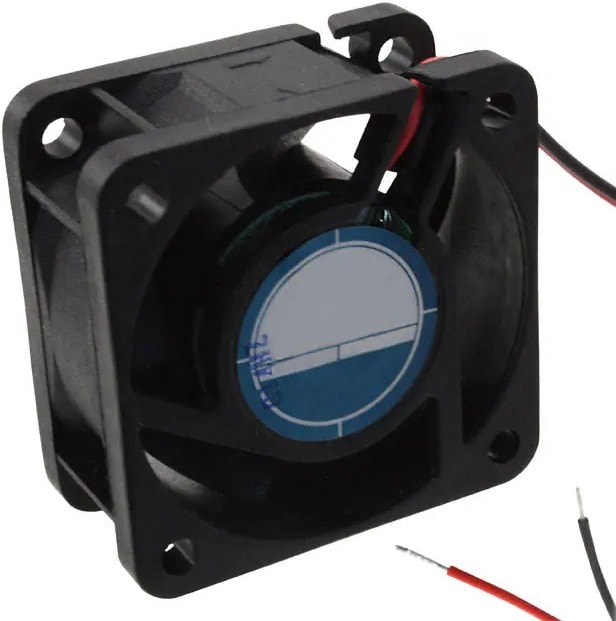

8005931559 OD4020-12HSS, Fan Tubeaxial 12VDC Square — 40mm L x 40mm H Sealed Sleeve 8.7 CFM (0.244m³/min) 2 Wire Leads Hirschmann
1740,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 40mm L x 40mm H Sealed Sleeve 9.0 CFM (0.252mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 1.2 |
| Fan Type | Tubeaxial |
| Series | OD4020-> |
| Тип подшипника | Sealed Sleeve |
| Размеры рамы,мм | 40×40 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 20 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Noise | 32.0dB |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 45000 Hrs @ 45В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-40mm L x 40mm H |
| Termination | 2 Wire Leads |
| Width | 20.00mm |
| Current Rating (Amps) | 0.110A |
| Static Pressure | 0.3 in H2O(74.7 Pa) |
| Частота вращения,об./мин. | 7800 |
| Производительность,м.куб./мин. | 9 |
| Шум, дБA | 32 |
| Voltage Range | 7 ~ 14VDC |
Детали
| Бренд | Orion Fans |
|---|
