NMB Technologies

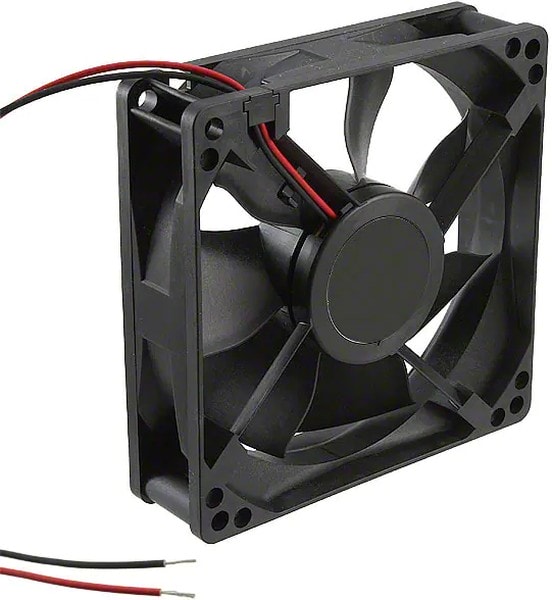

8006032673 3610SB-05W-B20-B00, Fan Tubeaxial 24VDC Square — 92mm L x 92mm H Ball 35.7 CFM (1.00m³/min) 2 Wire Leads Hirschmann
2090,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 92mm L x 92mm H Ball 35.7 CFM (1.00mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 840 |
| Fan Type | Tubeaxial |
| Series | 09225SA-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 92×92 |
| Рабочее напряжение,В | 24 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Noise | 25.0dB |
| Approval Agency | CE, UL, VDE |
| Lifetime @ Temp. | 100000 Hrs @ 25В°C |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-92mm L x 92mm H |
| Termination | 2 Wire Leads |
| Weight | 0.209 lb(94.8 g) |
| Width | 25.00mm |
| Current Rating (Amps) | 0.040A |
| Static Pressure | 0.086 in H2O(21.5 Pa) |
| Частота вращения,об./мин. | 2050 |
| Производительность,м.куб./мин. | 35.7 |
| Voltage Range | 12 ~ 27.6VDC |
Детали
| Бренд | NMB Technologies |
|---|
