Sunon

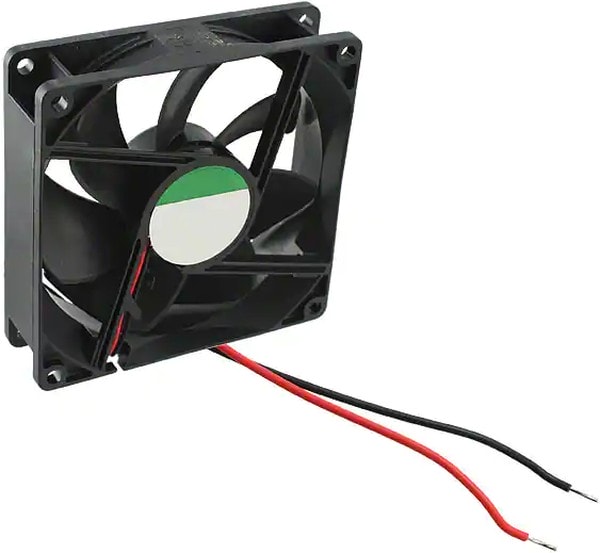

8006038550 EE92251B2-000U-999, Fan Tubeaxial 12VDC Square — 92mm L x 92mm H Ball 45.0 CFM (1.26m³/min) 2 Wire Leads Hirschmann
1920,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 92mm L x 92mm H Ball 45.0 CFM (1.26mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 1.6 |
| Fan Type | Tubeaxial |
| Series | EE |
| Тип подшипника | Ball |
| Размеры рамы,мм | 92×92 |
| Рабочее напряжение,В | 12 |
| Питание | 2pin |
| Brand | Sunon |
| Manufacturer | Sunon |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Tray |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Current Type | DC |
| Factory Pack Quantity: Factory Pack Quantity | 56 |
| Noise | 32.0dB(A) |
| Termination Style | Wire Leads-2 |
| Type | Axial |
| Approval Agency | CE, CUR, TUV, UL |
| Lifetime @ Temp. | 50000 Hrs @ 25В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-92mm L x 92mm H |
| Termination | 2 Wire Leads |
| Weight | 0.207 lb(93.89 g) |
| Width | 25.00mm |
| COO | CN |
| Housing Material | Polybutylene Terephthalate(PBT) |
| RoHS | Yes |
| Supplier Standard Pack | 56 |
| Единица измерения | шт |
| Current Rating (Amps) | 0.135A |
| Static Pressure | 0.13 in H2O(32.4 Pa) |
| Part # Aliases | D09023220G-00 |
| Pressure Type | 0.13 in H2O |
| Частота вращения,об./мин. | 2700 |
| Производительность,м.куб./мин. | 45 |
| Video File | Sunon DR Maglev |
| Voltage Range | 4.5 ~ 13.8VDC |
| Environmental Information | http://www.sunon.com/uFiles/file/01_about%20sunon/ |
Детали
| Бренд | Sunon |
|---|
