EBM-PAPST

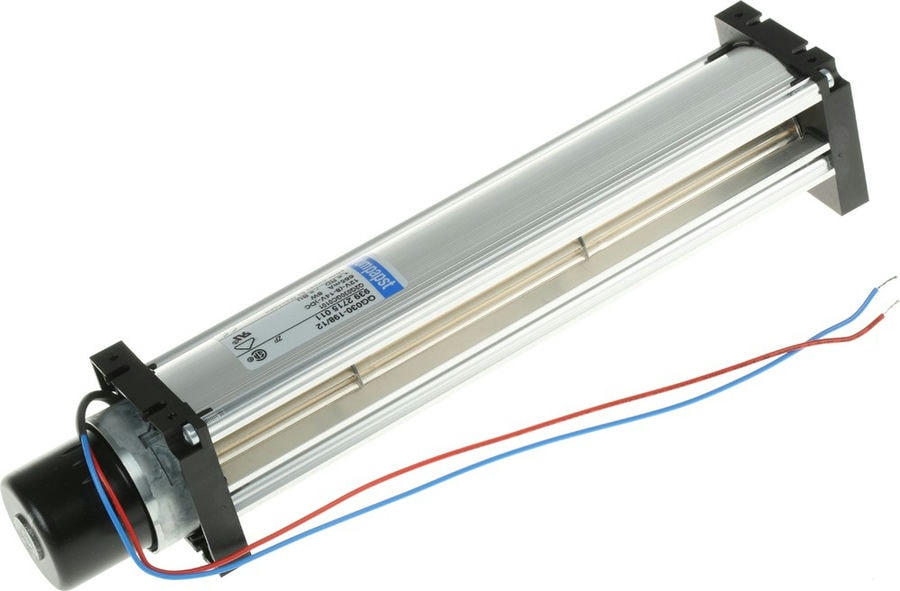

8006048440 QG030-198/12, Fan Blower, Cross Flow 12VDC Rectangular — 258mm L x 50mm H Ball 59.0 CFM (1.65m³/min) 2 Wire Leads Hirschmann
27870,00 ₽
Описание
Fan Blower, Cross Flow 12VDC Rectangular — 258mm L x 50mm H Ball 59.0 CFM (1.65mВі/min) 2 Wire Leads
| Вес, г | 290 |
| Потребляемая мощность, Вт | 8 |
| Air Flow | 100m³/h |
| Fan Type | Blower, Cross Flow |
| Noise Level | 51 dB |
| Series | QG030-> |
| Special Features | None |
| Тип подшипника | Ball |
| Размеры рамы,мм | 258×50 |
| Рабочее напряжение,В | 12 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6560 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Noise | 51.0dB(A) |
| Power Rating | 8 W |
| Approval Agency | CE, CSA, UL, VDE |
| Lifetime @ Temp. | 30000 Hrs @ 40В°C |
| Material — Blade | Aluminum |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 140В°F(-20 ~ 60В°C) |

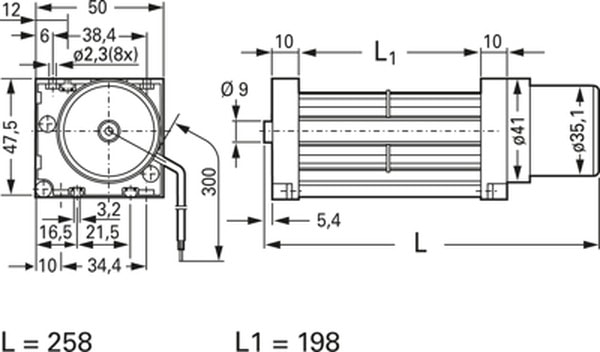

| Size / Dimension | Rectangular-258mm L x 50mm H |
| Termination | 2 Wire Leads |
| Weight | 0.639 lb(289.85 g) |
| Width | 47.50mm |
| Category | Tangential DC Blower |
| COO | DE |
| Housing Material | Plastic |
| Maximum Airflow | 59 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 12 V |
| Единица измерения | шт |
| Rated voltage | 12 V |
| Sound pressure level | 51 db |
| speed | 4250 1/min |
| Type of bearing | ball bearing |
| Volume flow | 100 m³/h |
| Blower Type | Tangential |
| Производительность,м.куб./мин. | 59 |
| AC or DC Operation | DC |
| Commutation Type | Electronic |
| Voltage Range | 8 ~ 14VDC |
Детали
| Бренд | EBM-PAPST |
|---|
