Sanyo Denki

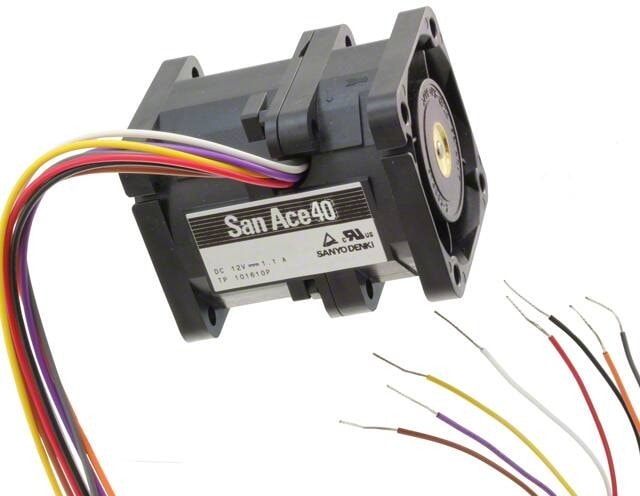

8006078940 9CRA0412P4J03, Fan Tubeaxial (Dual) 12VDC Square — 40mm L x 40mm H Ball 30.0 CFM (0.840m³/min) 4 Wire Leads per Fan Hirschmann
7730,00 ₽
Описание
Fan Tubeaxial (Dual) 12VDC Square — 40mm L x 40mm H Ball 30.0 CFM (0.840mВі/min) 4 Wire Leads per Fan
| Вес, г | 144 |
| Потребляемая мощность, Вт | 14.4 |
| Fan Type | Tubeaxial(Dual) |
| Series | San Ace 40-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 40×40 |
| Рабочее напряжение,В | 12 |
| Питание | 4pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | Counter-Rotating, Locked Rotor Protection, PWM Con |
| Noise | 62.0dB(A) |
| Approval Agency | CSA, TUV, UL |
| Lifetime @ Temp. | 40000 Hrs @ 60В°C |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | -4 ~ 158В°F(-20 ~ 70В°C) |
| Size / Dimension | Square-40mm L x 40mm H |
| Termination | 4 Wire Leads per Fan |
| Weight | 0.176 lb(80.00 g) |
| Width | 48.00mm |
| Current Rating (Amps) | 1.20A |
| Static Pressure | 2.25 in H2O(560.0 Pa) |
| Частота вращения,об./мин. | 16200 |
| Производительность,м.куб./мин. | 30 |
| Video File | Counter Rotating Fan DemonstrationSummary of SanAc |
| Voltage Range | 10.8 ~ 13.2VDC |
Детали
| Бренд | Sanyo Denki |
|---|
