Mechatronics

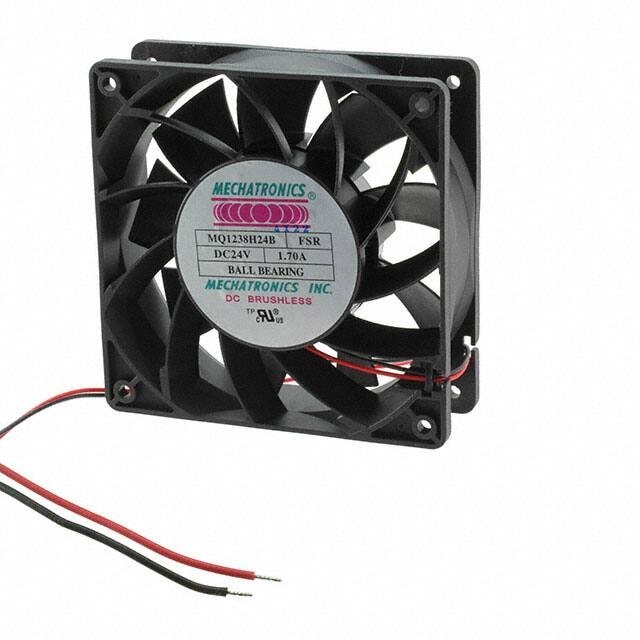

8006081760 MQ1238H24B-FSR, Fan Tubeaxial 24VDC Square — 120mm L x 120mm H Ball 226.0 CFM (6.33m³/min) 2 Wire Leads Hirschmann
7780,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 120mm L x 120mm H Ball 226.0 CFM (6.33mВі/min) 2 Wire Leads
| Fan Type | Tubeaxial |
| Series | MQ1238-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 24 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Thermal Overload Protector(TOP) |
| Noise | 65.0dB(A) |
| Approval Agency | CE, cUL, TUV, UL |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 2 Wire Leads |
| Weight | 0.772 lb(350.17 g) |
| Width | 38.00mm |
| Current Rating (Amps) | 1.70A |
| Static Pressure | 1.35 in H2O(336.3 Pa) |
| Частота вращения,об./мин. | 5000 |
| Производительность,м.куб./мин. | 226 |
Детали
| Бренд | Mechatronics |
|---|
