Comair Rotron

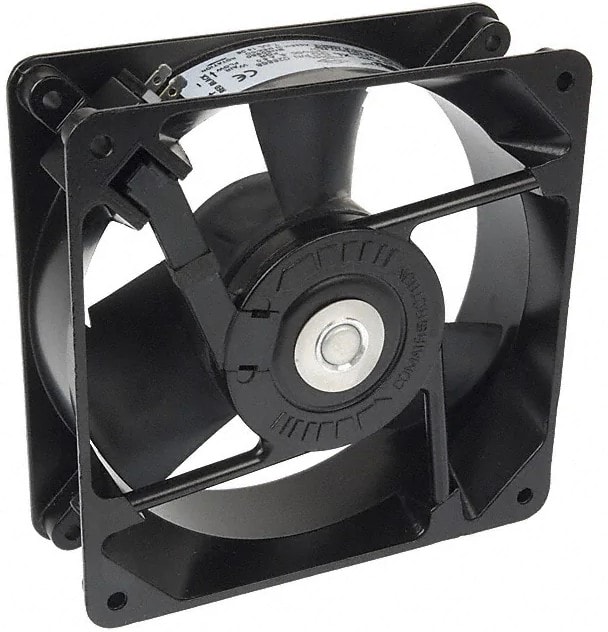

8006095763 19028868A, Fan Tubeaxial 12VDC Square — 119.13mm L x 119.13mm H Ball 110.0 CFM (3.08m³/min) 2 Terminals Hirschmann
7910,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 119.13mm L x 119.13mm H Ball 110.0 CFM (3.08mВі/min) 2 Terminals
| Потребляемая мощность, Вт | 6 |
| Fan Type | Tubeaxial |
| Series | Muffin XL-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 119.13×119.13 |
| Рабочее напряжение,В | 12 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart, Locked Rotor Protection |
| Noise | 50.0dB(A) |
| Approval Agency | CE, UL |
| Lifetime @ Temp. | 83000 Hrs @ 40В°C |
| Material — Blade | Plastic |
| Material — Frame | Zinc |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-119.13mm L x 119.13mm H |
| Termination | 2 Terminals |
| Weight | 1.4 lbs(635.0 g) |
| Width | 39.12mm |
| Current Rating (Amps) | 0.500A |
| Static Pressure | 0.278 in H2O(69.2 Pa) |
| Частота вращения,об./мин. | 3330 |
| Производительность,м.куб./мин. | 110 |
| Voltage Range | 6 ~ 14VDC |
Детали
| Бренд | Comair Rotron |
|---|
