Sanyo Denki

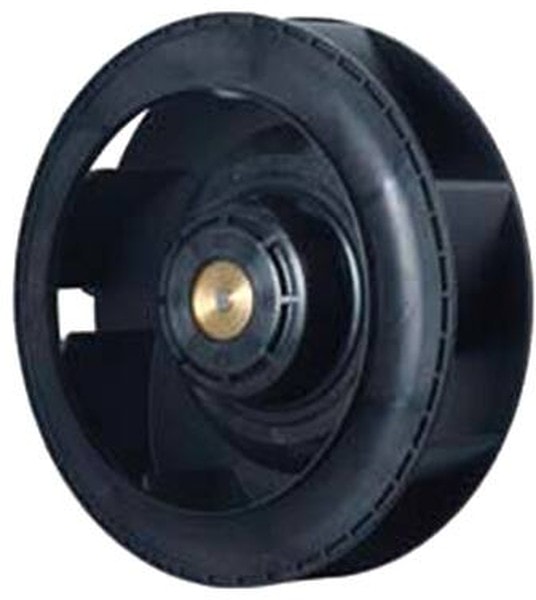

8006097557 9W2TP24P0H001, Fan Motorized Impellers 24VDC Round — 221mm Dia Ball 622.0 CFM (17.42m³/min) 4 Wire Leads Hirschmann
105700,00 ₽
Описание
Fan Motorized Impellers 24VDC Round — 221mm Dia Ball 622.0 CFM (17.42mВі/min) 4 Wire Leads
| Потребляемая мощность, Вт | 80.4 |
| Fan Type | Motorized Impellers |
| Series | San Ace 221W-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 221×221 |
| Рабочее напряжение,В | 24 |
| Питание | 4pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6560 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | PWM Control, Speed Sensor(Tach) |
| Noise | 71.5dB(A) |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 40000 Hrs @ 60В°C |
| Material — Blade | Plastic |
| Material — Frame | Aluminum |
| Operating Temperature | -13 ~ 158В°F(-25 ~ 70В°C) |
| Size / Dimension | Round-221mm Dia |
| Termination | 4 Wire Leads |
| Weight | 2.6 lbs(1.2 kg) |
| Width | 71.00mm |
| Current Rating (Amps) | 3.35A |
| Ingress Protection | IP56-Dust Protected, Water Resistant |
| Static Pressure | 2.13 in H2O(530.6 Pa) |
| Частота вращения,об./мин. | 3050 |
| Производительность,м.куб./мин. | 622 |
| Video File | Summary of SanAce Cooling SystemsSanAce Server Coo |
| Voltage Range | 16 ~ 36VDC |
Детали
| Бренд | Sanyo Denki |
|---|
