Sunon

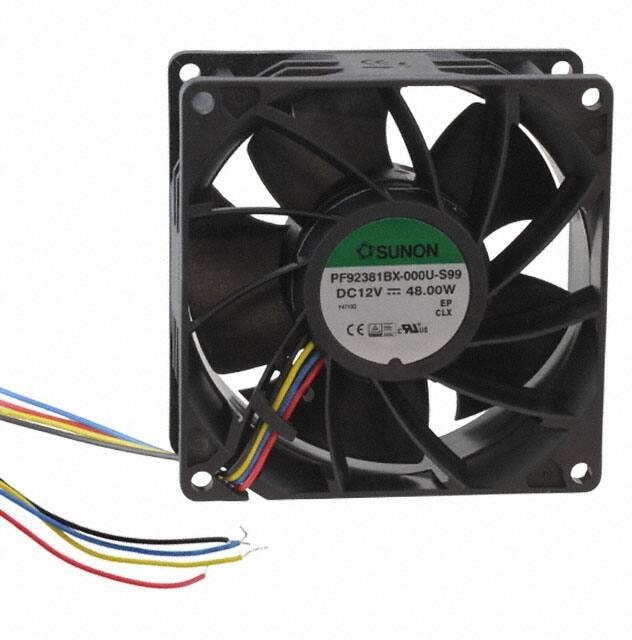

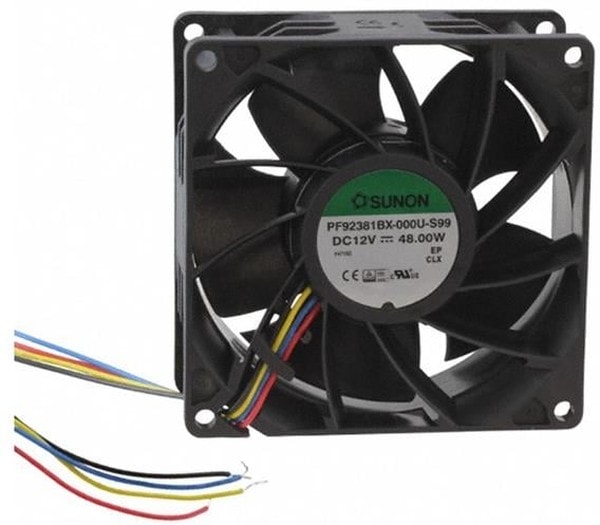

8006101082 PF92381BX-000U-S99, FAN AXIAL 92X38MM 12VDC WIRE Hirschmann
3570,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 92mm L x 92mm H Ball 182.4 CFM (5.11mВі/min) 4 Wire Leads
| Вес, г | 210 |
| Потребляемая мощность, Вт | 48 |
| Fan Type | Tubeaxial |
| Series | PF |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 12 |
| Brand | Sunon |
| Manufacturer | Sunon |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart, F Type, PWM |
| Current Type | DC |
| Factory Pack Quantity: Factory Pack Quantity | 1 |
| Noise | 72.1dB(A) |
| Termination Style | Wire Leads-4 |
| Approval Agency | CE, CUR, TUV, UL |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-92mm L x 92mm H |
| Termination | 4 Wire Leads |
| Weight | 0.463 lb(210.01 g) |
| Width | 38.00mm |
| Current Rating (Amps) | 4.00A |
| Static Pressure | 2.94 in H2O(732.3 Pa) |
| Частота вращения,об./мин. | 13000 |
| Производительность,м.куб./мин. | 182.4 |
| Tradename | MagLev |
| Video File | Sunon DR MaglevSunon Demonstrates the Autorestart |
| Voltage Range | 10.2 ~ 13.2VDC |
| Environmental Information | http://www.sunon.com/uFiles/file/01_about%20sunon/ |
Детали
| Бренд | Sunon |
|---|
