Comair Rotron

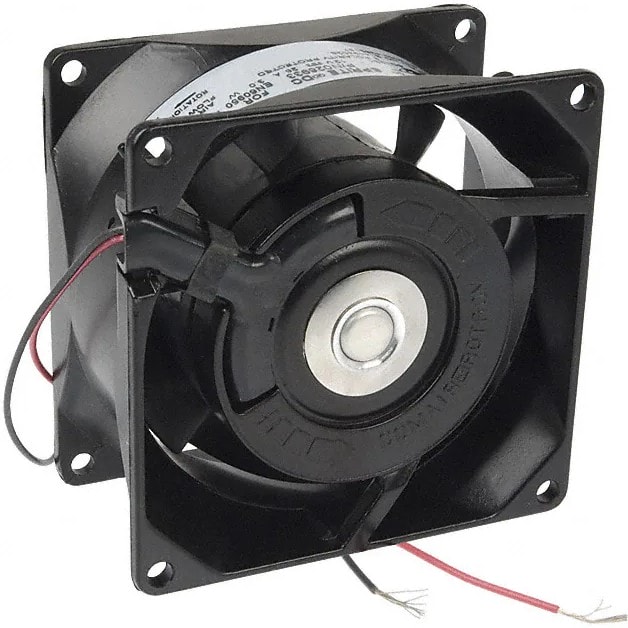

8006105682 19028935A, Fan Tubeaxial 48VDC Square — 79.8mm L x 79.8mm H Ball 35.0 CFM (0.980m³/min) 2 Wire Leads Hirschmann
9180,00 ₽
Описание
Fan Tubeaxial 48VDC Square — 79.8mm L x 79.8mm H Ball 35.0 CFM (0.980mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 3 |
| Fan Type | Tubeaxial |
| Series | Sprite-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 79.8×79.8 |
| Рабочее напряжение,В | 48 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart, Locked Rotor Protection |
| Noise | 47.6dB(A) |
| Approval Agency | CE, UL |
| Lifetime @ Temp. | 83000 Hrs @ 40В°C |
| Material — Blade | Plastic |
| Material — Frame | Zinc |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-79.8mm L x 79.8mm H |
| Termination | 2 Wire Leads |
| Weight | 1.1 lbs(500.0 g) |
| Width | 41.80mm |
| Current Rating (Amps) | 0.060A |
| Static Pressure | 0.152 in H2O(37.9 Pa) |
| Частота вращения,об./мин. | 3500 |
| Производительность,м.куб./мин. | 35 |
| Voltage Range | 24 ~ 56VDC |
Детали
| Бренд | Comair Rotron |
|---|
