Delta Electonics

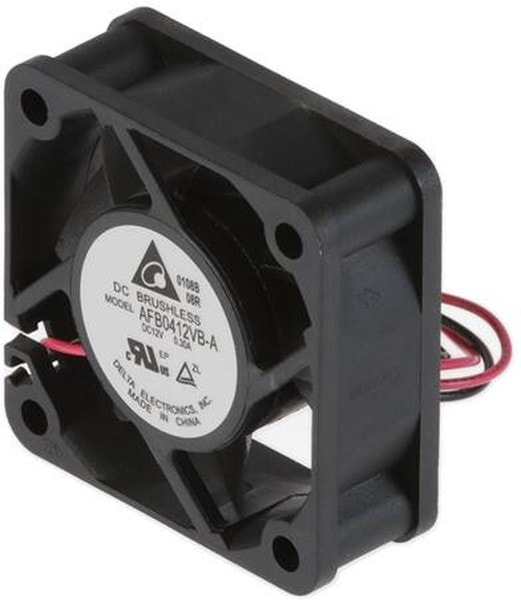

8006122900 AFB0412VB-A, Fan Tubeaxial 12VDC Square — 40mm L x 40mm H Ball 15.2 CFM (0.426m³/min) 2 Wire Leads Hirschmann
3140,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 40mm L x 40mm H Ball 15.2 CFM (0.426mВі/min) 2 Wire Leads
| Вес, г | 9 |
| Потребляемая мощность, Вт | 2.52 |
| Fan Type | Tubeaxial |
| Series | AFB-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 40×40 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 15 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | Locked Rotor Protection |
| Noise | 46.0dB(A) |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-40mm L x 40mm H |
| Termination | 2 Wire Leads |
| Weight | 0.057 lb(25.85 g) |
| Width | 15.00mm |
| Current Rating (Amps) | 0.210A |
| Static Pressure | 0.622 in H2O(155.0 Pa) |
| Частота вращения,об./мин. | 12000 |
| Производительность,м.куб./мин. | 15.2 |
| Voltage Range | 5 ~ 13.2VDC |
| Environmental Information | http://www.delta-fan.com/Download/Compliance/RoHS. |
Детали
| Бренд | Delta Electonics |
|---|
