Orion Fans

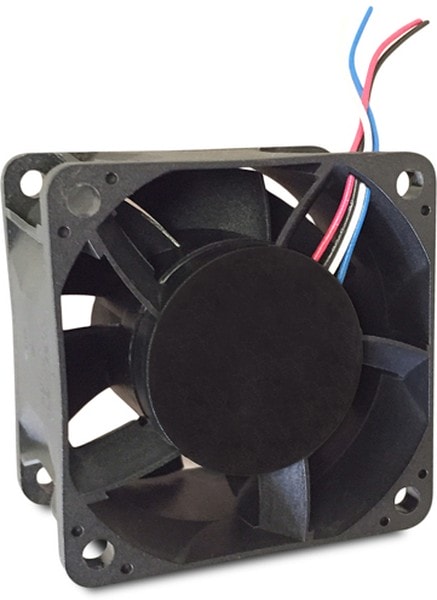

8006127022 OD6038-24HHBXC10A, Fan Tubeaxial 24VDC Square — 60mm L x 60mm H Ball 86.0 CFM (2.41m³/min) 4 Wire Leads Hirschmann
6730,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 60mm L x 60mm H Ball 86.0 CFM (2.41mВі/min) 4 Wire Leads
| Потребляемая мощность, Вт | 30 |
| Fan Type | Tubeaxial |
| Mounting | Flange Mount |
| Series | OD6038-XC |
| Special Features | Super High Speed |
| Тип подшипника | Ball |
| Размеры рамы,мм | 60×60 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 38 |
| Питание | 4pin |
| Brand | Orion Fans |
| Manufacturer | Orion Fans |
| Product Category | DC Fan |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Open Collector Tachometer, PWM |
| Current Type | DC |
| Factory Pack Quantity: Factory Pack Quantity | 1 |
| Noise | 66.0dB(A) |
| Termination Style | Wire Leads-3 |
| Type | Axial |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | -4 ~ 158В°F(-20 ~ 70В°C) |
| Size / Dimension | Square-60mm L x 60mm H |
| Termination | 4 Wire Leads |
| Weight | 0.276 lb(125.19 g) |
| Width | 38.00mm |
| COO | CN |
| Housing Material | Polybutylene Terephthalate(PBT) |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Единица измерения | шт |
| Current Rating (Amps) | 1.25A |
| Static Pressure | 2.95 in H2O(734.8 Pa) |
| Pressure Type | 2.95 in H2O |
| Частота вращения,об./мин. | 16000 |
| Производительность,м.куб./мин. | 86 |
| Шум, дБA | 66 |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Pressure | 2.95inH2O |
| Minimum Operating Temperature (°C) | -10 |
| Protection | Auto Restart|Polarity |
| Shape | Square |
| Voltage Range | 21.6 ~ 26.4VDC |
| Size (Metric) (mm) | 60 X 60 X 38 |
| Operating Input Voltage Range (V) | 16 to 26 |
Детали
| Бренд | Orion Fans |
|---|
