Delta Electonics

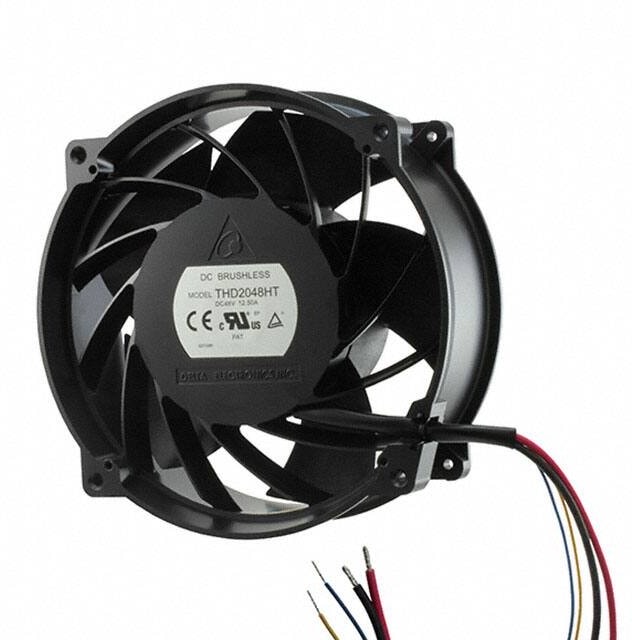

8006129578 THD2048HT, Fan Tubeaxial 48VDC Round — 200mm Dia Ball 1026.8 CFM (28.75m³/min) 4 Wire Leads Hirschmann
40280,00 ₽
Описание
Fan Tubeaxial 48VDC Round — 200mm Dia Ball 1026.8 CFM (28.75mВі/min) 4 Wire Leads
| Потребляемая мощность, Вт | 384 |
| Fan Type | Tubeaxial |
| Series | THD-Bionic Blade-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 200×200 |
| Рабочее напряжение,В | 48 |
| Толщина,мм | 70 |
| Питание | 4pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor |
| Noise | 78.0dB(A) |
| Approval Agency | CE, cURus, TUV |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Plastic |
| Material — Frame | Aluminum |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Round-200mm Dia |
| Termination | 4 Wire Leads |
| Weight | 3.5 lbs(1.6 kg) |
| Width | 70.00mm |
| Current Rating (Amps) | 8.00A |
| Static Pressure | 4.945 in H2O(1232.2 Pa) |
| Частота вращения,об./мин. | 7400 |
| Производительность,м.куб./мин. | 1026.8 |
| Voltage Range | 36 ~ 75VDC |
Детали
| Бренд | Delta Electonics |
|---|
