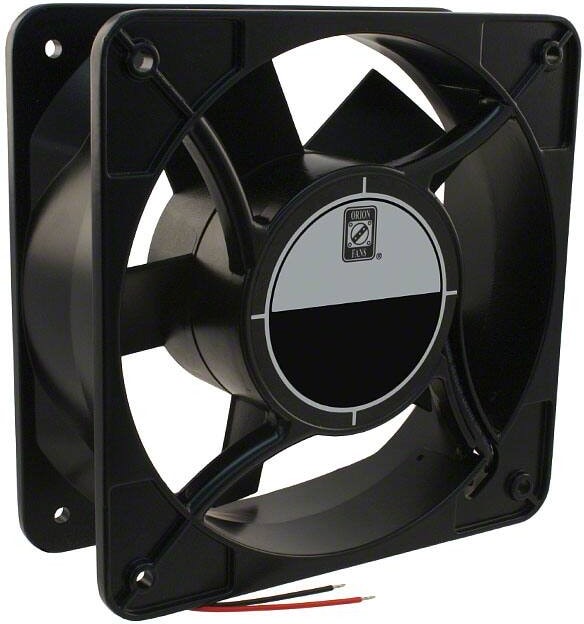

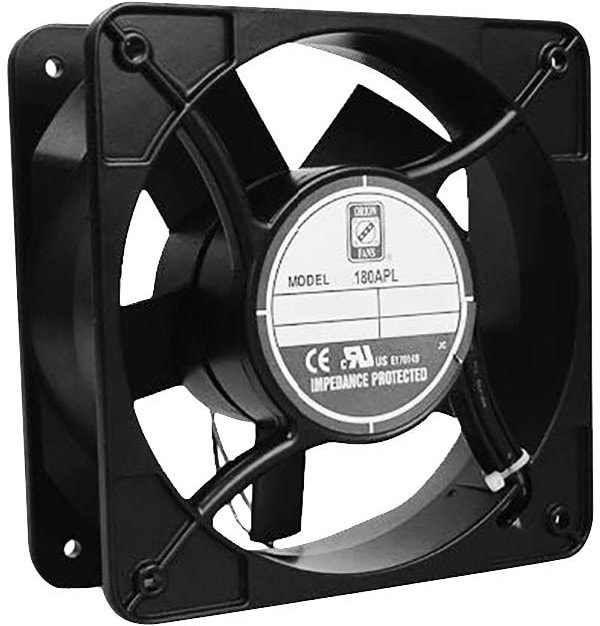

8006138714 OD180APL-24HB, Fan Tubeaxial 24VDC Square — 180mm L x 180mm H Ball 470.0 CFM (13.16m³/min) 2 Wire Leads Hirschmann
27410,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 180mm L x 180mm H Ball 470.0 CFM (13.16mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 50.4 |
| Fan Type | Tubeaxial |
| Series | OD180APL-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 80×80 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 65 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart, Locked Rotor Protection |
| Noise | 65.0dB |
| Power Rating | 50.4W |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 149В°F(-20 ~ 65В°C) |
| Size / Dimension | Square-180mm L x 180mm H |
| Termination | 2 Wire Leads |
| Width | 65.00mm |
| Current Rating (Amps) | 2.1A |
| Static Pressure | 1.2 in H2O(298.9 Pa) |
| Bearing Type | Ball Bearing |
| Current Rating | 2.1A |
| Air Flow — CFM | 470CFM |
| External Depth | 65mm |
| Fan Frame Size | 180mm |
| Fan Frame Type | Square |
| Noise Rating | 65dBA |
| Power Connection Type | 2 Lead Wires |
| Product Range | OD180APL Series |
| Rated Speed | 3500rpm |
| Частота вращения,об./мин. | 3500 |
| Производительность,м.куб./мин. | 470 |
| Шум, дБA | 65 |
| Supply Voltage VDC | 24V |
Детали
| Бренд | Orion Fans |
|---|
