Delta Electonics

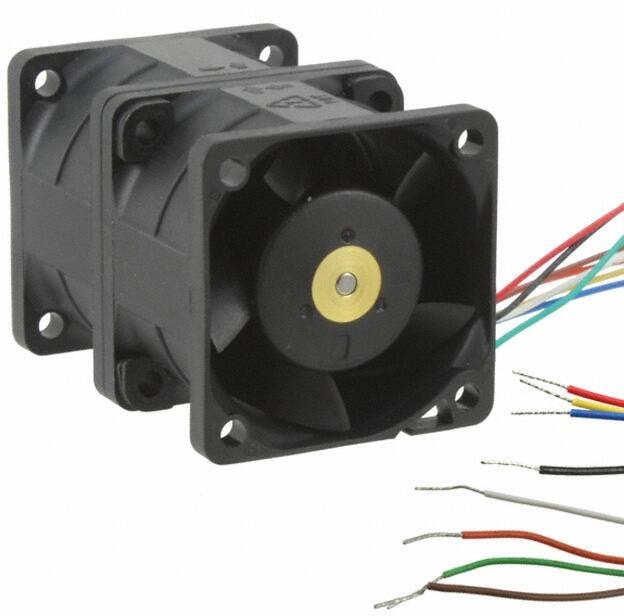

8006150022 GFC0412DS-DF00, Fan Tubeaxial (Dual) 12VDC Square — 40mm L x 40mm H Ball 32.2 CFM (0.902m³/min) 4 Wire Leads per Fan Hirschmann
7130,00 ₽
Описание
Fan Tubeaxial (Dual) 12VDC Square — 40mm L x 40mm H Ball 32.2 CFM (0.902mВі/min) 4 Wire Leads per Fan
| Потребляемая мощность, Вт | 15.6 |
| Fan Type | Tubeaxial(Dual) |
| Series | GFC-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 40×40 |
| Рабочее напряжение,В | 12 |
| Питание | 4pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor |
| Noise | 64.5dB(A) |
| Approval Agency | CE, cURus, TUV |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | 14 ~ 140В°F(-10 ~ 60В°C) |
| Size / Dimension | Square-40mm L x 40mm H |
| Termination | 4 Wire Leads per Fan |
| Weight | 0.183 lb(83.01 g) |
| Width | 56.00mm |
| Current Rating (Amps) | 1.30A |
| Static Pressure | 2.631 in H2O(655.4 Pa) |
| Частота вращения,об./мин. | 16000 |
| Производительность,м.куб./мин. | 32.2 |
| Voltage Range | 10.8 ~ 12.6VDC |
| Environmental Information | http://www.delta-fan.com/Download/Compliance/RoHS. |
Детали
| Бренд | Delta Electonics |
|---|
