Delta Electonics

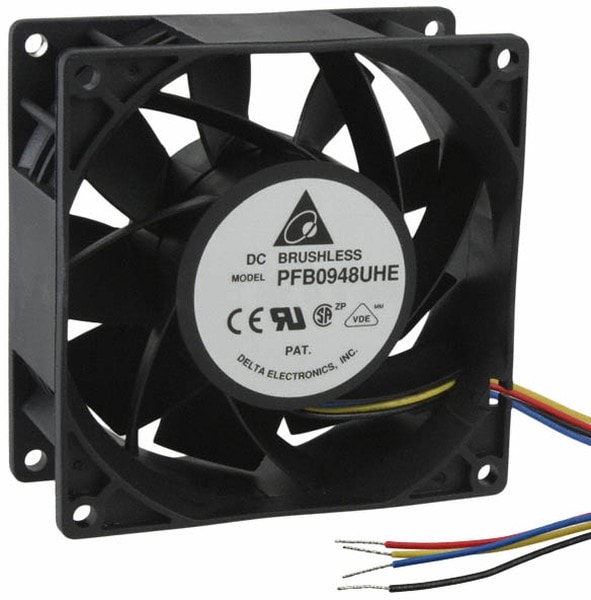

8006158831 PFB0948UHE-TP16, Fan Tubeaxial 48VDC Square — 92mm L x 92mm H Ball 153.5 CFM (4.30m³/min) 4 Wire Leads Hirschmann
7850,00 ₽
Описание
Fan Tubeaxial 48VDC Square — 92mm L x 92mm H Ball 153.5 CFM (4.30m³/min) 4 Wire Leads
| Вес, г | 250 |
| Air Flow | 153.5 CFM(4.30m³/min) |
| Fan Type | Tubeaxial |
| Размеры рамы,мм | 92×92 |
| Рабочее напряжение,В | 48 |
| Питание | 4pin |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor(Tach) |
| Noise | 64.0dB(A) |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | -40 ~ 158°F(-40 ~ 70°C) |
| Termination | 4 Wire Leads |
| Width | 38.00mm |
| Static Pressure | 1.449 in H2O(360.9 Pa) |
| Bearing Type | Ball |
| Power (Watts) | 24.96 W |
| RPM | 7000 RPM |
| Voltage — Rated | 48VDC |
Детали
| Бренд | Delta Electonics |
|---|
