Sunon

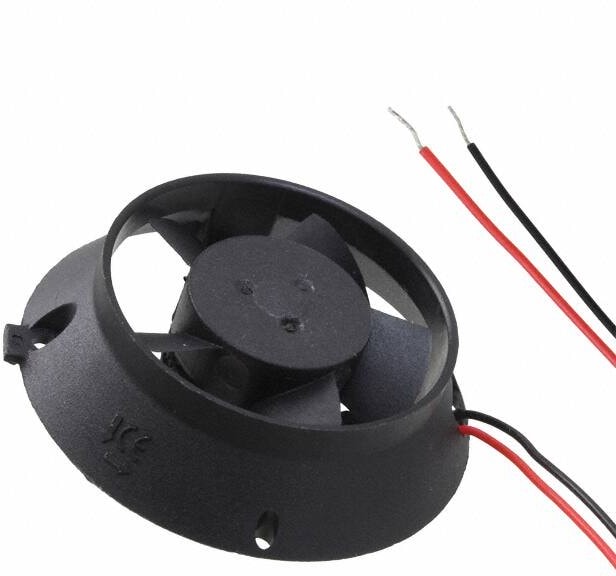

8006165107 HA30101V3-E00U-A99, Fan Tubeaxial 12VDC Round — 39.8mm Dia Vapo-Bearing™ 1.9 CFM (0.053m³/min) 2 Wire Leads Hirschmann
1840,00 ₽
Описание
Fan Tubeaxial 12VDC Round — 39.8mm Dia Vapo-Bearingв„ў 1.9 CFM (0.053mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 300 |
| Fan Type | Tubeaxial |
| Series | MagLevВ® HA-> |
| Тип подшипника | Vapo-Bearingв(ў |
| Размеры рамы,мм | 39.8×39.8 |
| Рабочее напряжение,В | 12 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Tray |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart |
| Noise | 10.5dB(A) |
| Approval Agency | CE, CUR, TUV, UL |
| Lifetime @ Temp. | 70000 Hrs @ 60В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Round-39.8mm Dia |
| Termination | 2 Wire Leads |
| Weight | 0.016 lb(7.26 g) |
| Width | 10.40mm |
| Current Rating (Amps) | 0.025A |
| Static Pressure | 0.04 in H2O(10.0 Pa) |
| Частота вращения,об./мин. | 4400 |
| Производительность,м.куб./мин. | 1.9 |
| Video File | Sunon Demonstrates the Autorestart and Reverse Air |
| Voltage Range | 10 ~ 13.8VDC |
| Environmental Information | http://www.sunon.com/uFiles/file/01_about%20sunon/ |
Детали
| Бренд | Sunon |
|---|
