NMB Technologies
8006180365 4715KL-07W-B39-E00, Fan Tubeaxial 48VDC Square — 119mm L x 119mm H Ball 108.0 CFM (3.02m³/min) 3 Wire Leads Hirschmann
4500,00 ₽
Описание

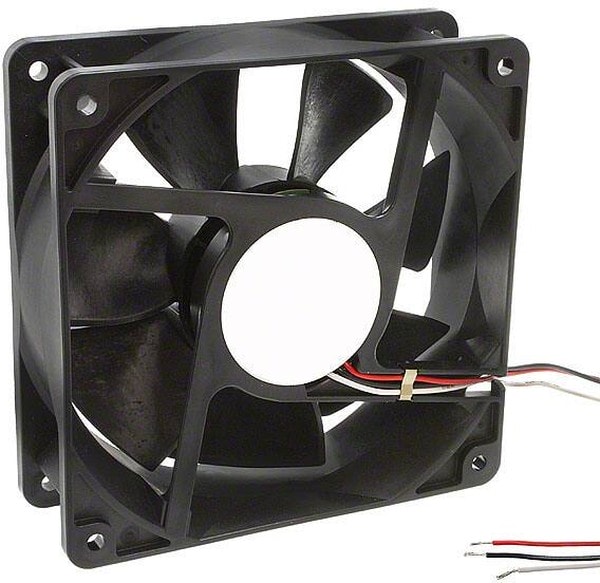

Fan Tubeaxial 48VDC Square — 119mm L x 119mm H Ball 108.0 CFM (3.02mВі/min) 3 Wire Leads
| Потребляемая мощность, Вт | 7.68 |
| Fan Type | Tubeaxial |
| Series | 11938KA-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 119×119 |
| Рабочее напряжение,В | 48 |
| Питание | 3pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Locked Rotor Sensor |
| Noise | 42.5dB |
| Approval Agency | CE, CSA, UL, VDE |
| Lifetime @ Temp. | 50000 Hrs @ 25В°C |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-119mm L x 119mm H |
| Termination | 3 Wire Leads |
| Weight | 0.573 lb(259.91 g) |
| Width | 38.40mm |
| Current Rating (Amps) | 0.160A |
| Static Pressure | 0.27 in H2O(67.3 Pa) |
| Частота вращения,об./мин. | 2950 |
| Производительность,м.куб./мин. | 108 |
| Voltage Range | 25 ~ 55.2VDC |
Детали
| Бренд | NMB Technologies |
|---|
