Orion Fans

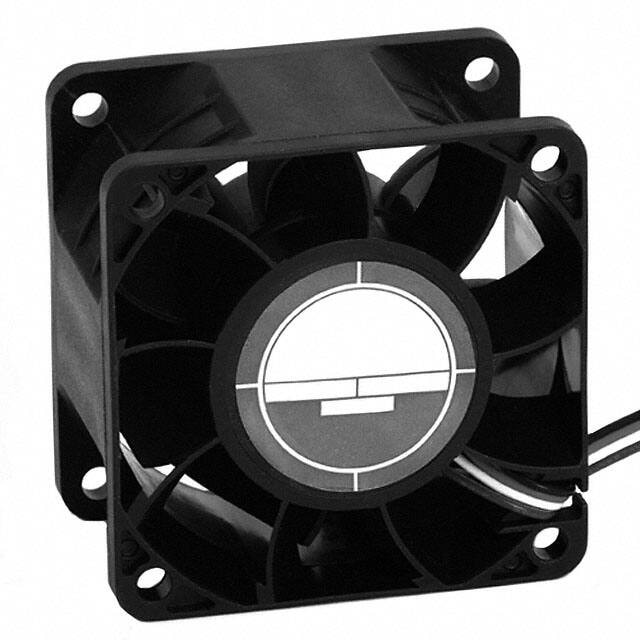

8006182568 OD6038-12HHBXC10A, Fan Tubeaxial 12VDC Square — 60mm L x 60mm H Ball 86.0 CFM (2.41m³/min) 4 Wire Leads Hirschmann
6730,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 60mm L x 60mm H Ball 86.0 CFM (2.41mВі/min) 4 Wire Leads
| Потребляемая мощность, Вт | 36 |
| Fan Type | Tubeaxial |
| Series | OD6038 XC-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 60×60 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 38 |
| Питание | 4pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart, PWM Control, Speed Sensor(Tach) |
| Noise | 66.0dB |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-60mm L x 60mm H |
| Termination | 4 Wire Leads |
| Weight | 0.276 lb(125.19 g) |
| Width | 38.00mm |
| Current Rating (Amps) | 2.7A |
| Static Pressure | 2.95 in H2O(734.8 Pa) |
| Частота вращения,об./мин. | 16000 |
| Производительность,м.куб./мин. | 86 |
| Voltage Range | 10.8 ~ 13.2VDC |
Детали
| Бренд | Orion Fans |
|---|
