Sanyo Denki

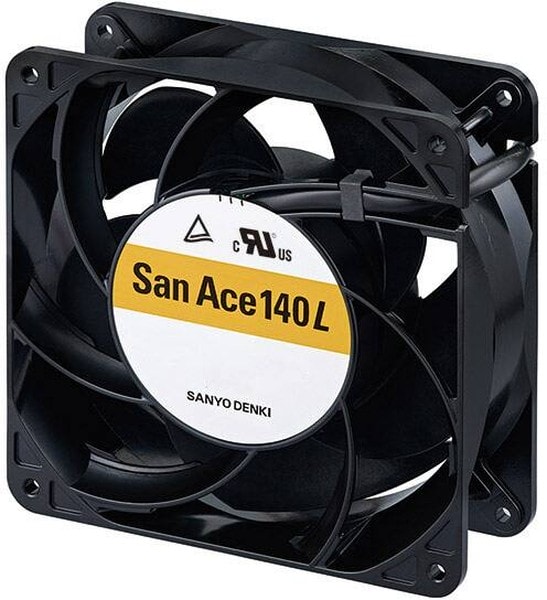

8006182672 9LG1412H5002, Fan Tubeaxial 12VDC Square — 140mm L x 140mm H Ball 173.0 CFM (4.84m³/min) 2 Wire Leads Hirschmann
26930,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 140mm L x 140mm H Ball 173.0 CFM (4.84mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 12 |
| Fan Type | Tubeaxial |
| Series | San Ace 140L-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 140×140 |
| Рабочее напряжение,В | 12 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | Locked Rotor Protection |
| Approval Agency | CSA, TUV, UL |
| Lifetime @ Temp. | 180000 Hrs @ 60В°C |
| Material — Blade | Plastic |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 158В°F(-20 ~ 70В°C) |
| Size / Dimension | Square-140mm L x 140mm H |
| Termination | 2 Wire Leads |
| Weight | 1.8 lb(800.0 g) |
| Width | 51.00mm |
| Current Rating (Amps) | 1.00A |
| Static Pressure | 1.04 in H2O(258.0 Pa) |
| Частота вращения,об./мин. | 4100 |
| Производительность,м.куб./мин. | 173 |
| Voltage Range | 10.2 ~ 13.8VDC |
Детали
| Бренд | Sanyo Denki |
|---|
