Orion Fans

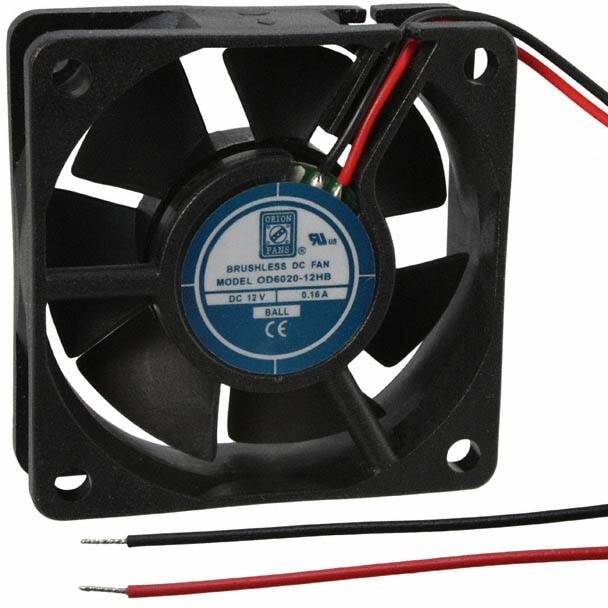

8006185115 OD6020-12HB, FAN AXIAL 60X20MM 12VDC WIRE Hirschmann
2820,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 60mm L x 60mm H Ball 18.0 CFM (0.504mВі/min) 2 Wire Leads
| Fan Type | Tubeaxial |
| Series | OD6020-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 60×60 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 20 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Noise | 30.0dB |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | -4 ~ 167В°F(-20 ~ 75В°C) |
| Size / Dimension | Square-60mm L x 60mm H |
| Termination | 2 Wire Leads |
| Width | 20.00mm |
| COO | TW |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Единица измерения | шт |
| Current Rating (Amps) | 0.160A |
| Static Pressure | 0.14 in H2O(34.9 Pa) |
| Частота вращения,об./мин. | 4500 |
| Производительность,м.куб./мин. | 18 |
| Шум, дБA | 30 |
| Voltage Range | 8 ~ 16VDC |
Детали
| Бренд | Orion Fans |
|---|
