EBM-PAPST

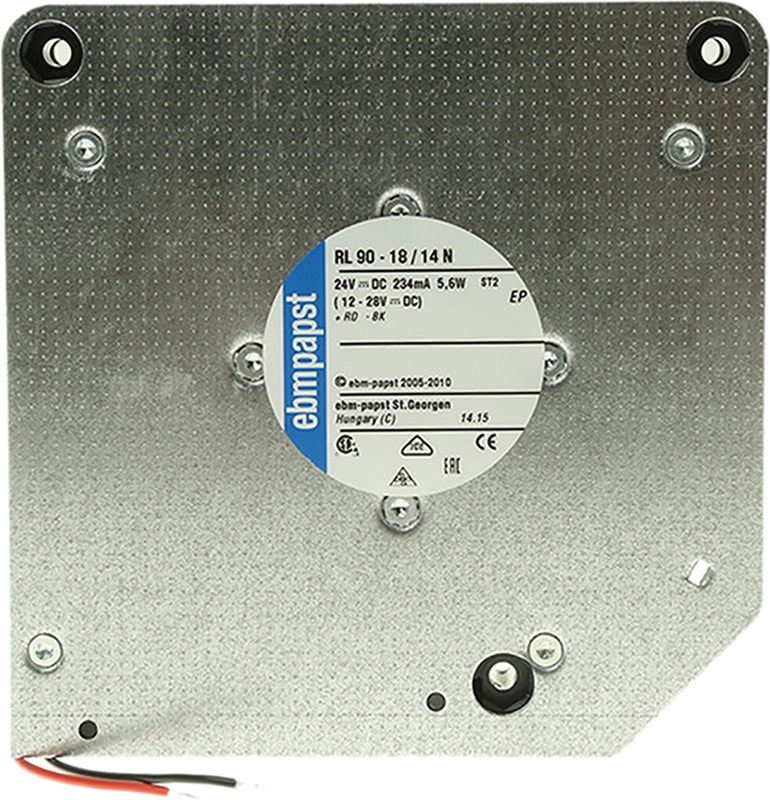

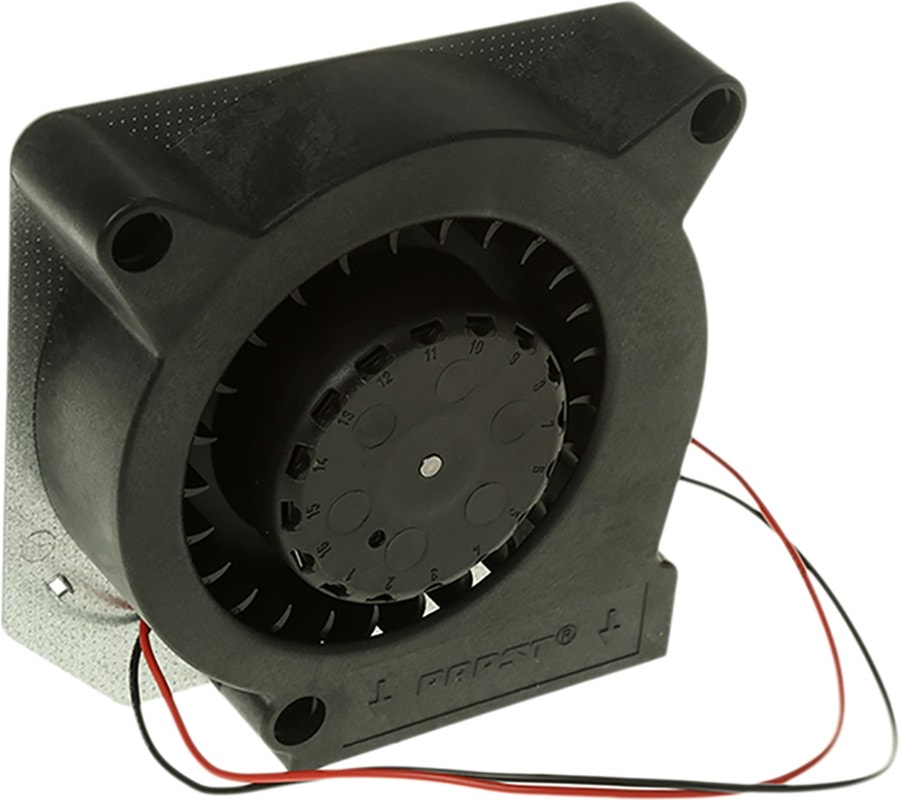

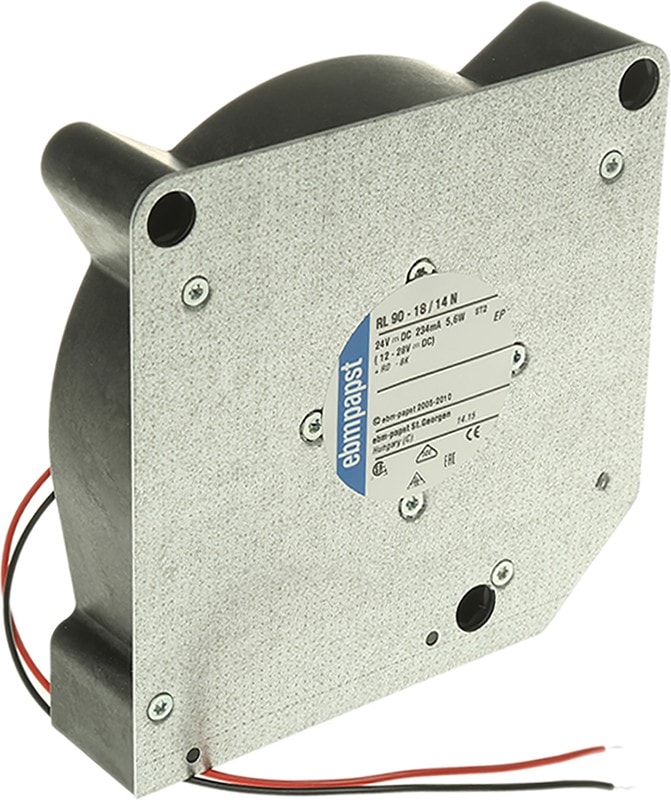

8006192067 RL90-18/14N, FAN BLOWER 121X37MM 24VDC WIRE Hirschmann
20420,00 ₽
Описание
The ebm-papst Centrifugal fan has an airflow of 40m³/h at a fan speed of 2500rpm and has a supply voltage rating of 24VDC.
| Air Flow | 40m³/h |
| Noise Level | 58 dB |
| Series | RL 90 N |
| Special Features | N/A |
| Размеры рамы,мм | 121×121 |
| Рабочее напряжение,В | 24 |
| Питание | 2pin |
| ECCN | EAR99 |
| Power Rating | 5 W |
| Operating Temperature | 0 to 75 °C |
| Termination | Lead Wires |
| Width | 120.6mm |
| Category | DC Blower |
| COO | US |
| Housing Material | Galvanised Sheet Steel |
| Maximum Airflow | 23.5 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 24 V |
| Единица измерения | шт |
| Blower Type | Centrifugal |
| Производительность,м.куб./мин. | 23.5 |
| AC or DC Operation | DC |
| Direction of Curve | Forward |
| Mounting hole diameter | 4.2mm |
| Commutation Type | Electronic |
| Horizontal Hole Spacing | 100.8mm |
| Mounting Hole Spacing | 104.8×100.8mm |
| Vertical Hole Spacing | 104.8mm |
Детали
| Бренд | EBM-PAPST |
|---|
