NMB Technologies

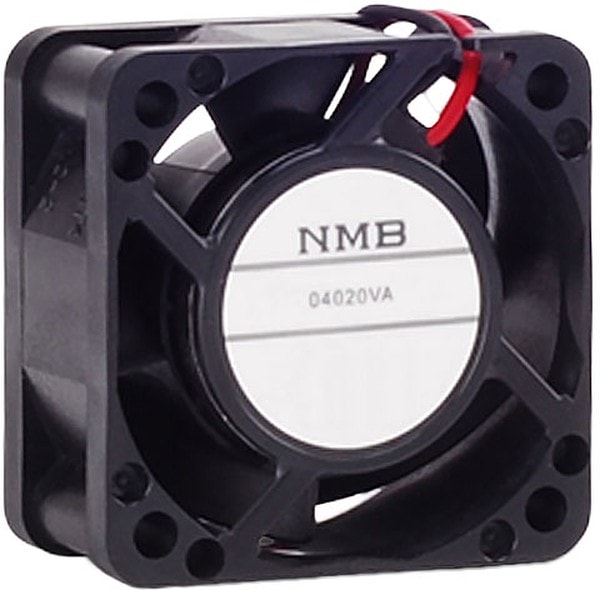

8006395315 04020VA-12Q-CA-00, DC Fans DC Tubeaxial Fan, 40x40x20mm, 12VDC, 12.4CFM, Rib Mount, Ball, Lead Wires, IP69K Hirschmann
2900,00 ₽
Описание
IP69K Cooling Fans
NMB Technologies IP69K Cooling Fans are available in a range of sizes with a 12V DC, 24V DC, or 48V DC operating voltage and airflow ranging from 12.36CFM to 346.8CFM. These fans have the highest extreme environment rating and offer protection against close range, high temperature, and high-pressure spray-downs. Options include a metal casing for even more reliability in high temperatures. NMB Technologies IP69K Cooling Fans operate at a temperature range of -10°C to +70°C. Typical applications include harsh environments, factory automation, food processing industry, refrigeration, LED lighting system cooling, inverters, telecom, and horticulture.
| Вес, г | 40 |
| Потребляемая мощность, Вт | 1.56 |
| Air Flow | 12.4 CFM(0.347m³/min) |
| Fan Type | Tubeaxial |
| Series | 04020VA |
| Тип подшипника | Ball |
| Размеры рамы,мм | 40×40 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 20 |
| Brand | NMB Technologies |
| Manufacturer | NMB Technologies |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| Features | Auto Restart |
| Current Type | DC |
| Factory Pack Quantity: Factory Pack Quantity | 210 |
| IP Rating | IP69K |
| Noise | 42.0dB |
| Termination Style | Wire Leads-2 |
| Type | Tubeaxial |
| Operating Temperature | 14 ~ 158°F(-10 ~ 70°C) |
| Termination | 2 Wire Leads |
| Width | 20.00mm |
| Housing Material | Plastic |
| Ingress Protection | IP69K-Dust Tight, High Temp Water Jets, Waterproof |
| Static Pressure | 0.57 in H2O(142.0 Pa) |
| Bearing Type | Ball |
| Pressure Type | 0.57 in H2O |
| Частота вращения,об./мин. | 11000 |
| Производительность,м.куб./мин. | 12.4 |
| Шум, дБA | 42 |
| Power (Watts) | 1.56 W |
| RPM | 11000 RPM |
| Voltage — Rated | 12VDC |
| Tradename | NMB-MAT |
Детали
| Бренд | NMB Technologies |
|---|
