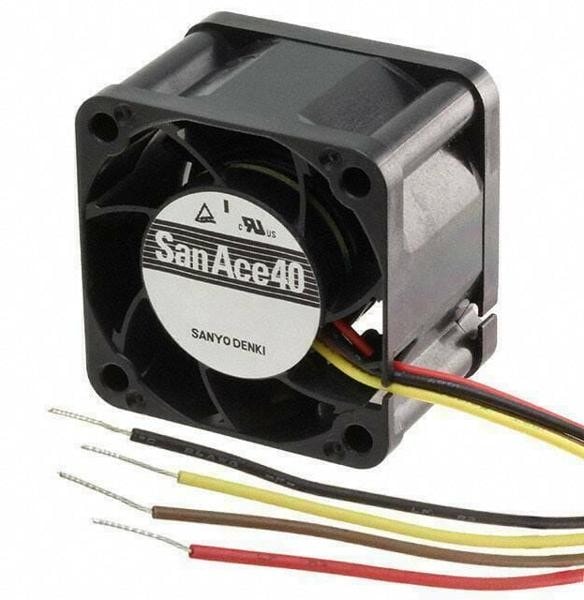

Sanyo Denki
8006403594 9GA0424P3J001, DC Fans DC Axial Fan, 40x40x28mm, 24VDC, High Performance, Low Power, Tachometer, PWM Hirschmann
4000,00 ₽
Описание
Описание Вентилятор: DC; осевой; 24ВDC; 40x40x28мм; 40,2куб.м/ч; 54дБА Характеристики
| Категория | вентилятор |
| Тип | осевой |
| Вес, г | 53 |
| Air Flow | 40.3m³/h |
| Noise Level | 54dB(A) |
| Series | 9GA |
| Supply Voltage | 24 V dc |
| Размеры рамы,мм | 40×40 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 28 |
| Brand | Sanyo Denki |
| Factory Pack Quantity | 126 |
| Manufacturer | Sanyo Denki |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Product | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| Features | Tachometer, PWM |
| Airflow | 23.7 CFM |
| Current Type | DC |
| Depth | 28 mm |
| Factory Pack Quantity: Factory Pack Quantity | 126 |
| Noise | 54 dBA |
| Operating Supply Voltage | 24 VDC |
| Power Rating | 6.48 W |
| Termination Style | Wire Leads |
| Type | Low Power Consumption Fan |
| Width | 40mm |
| Housing Material | Plastic |
| RoHS | Details |
| Supplier Standard Pack | 126 |
| Единица измерения | шт |
| Power consumption | 6.48W |
| speed | 18000 RPM |
| Bearing Type | Ball |
| Frame Dimensions — mm | 40 mm L x 28 mm W x 40 mm H |
| Part # Aliases | 66W6381 |
| Pressure Type | 54 mmAq |
| Tradename | San Ace |
| AC or DC Operation | DC |
| Maximum Current | 270mA |
| Sensor Type | Pulse |
| Termination Type | Lead Wire |
| Height | 40 mm |
| Size | 40 mm |
| Length | 40 mm |
Детали
| Бренд | Sanyo Denki |
|---|
