Delta Electonics

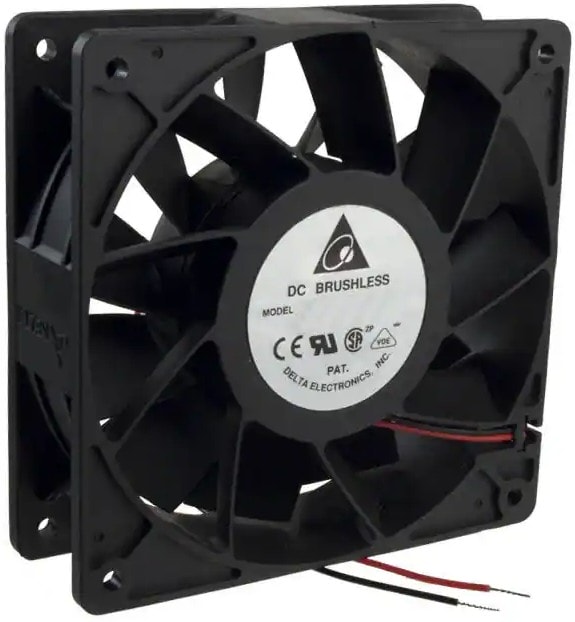

8006565691 PFB1224EHEWCA, Fan Tubeaxial 24VDC Square — 120mm L x 120mm H Ball 181.3 CFM (5.08m³/min) 2 Wire Leads Hirschmann
7010,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 120mm L x 120mm H Ball 181.3 CFM (5.08mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 21.6 |
| Fan Type | Tubeaxial |
| Series | PFB-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 24 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Locked Rotor Protection |
| Noise | 59.0dB(A) |
| Approval Agency | CE, CSA, UL, VDE |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | 14 ~ 140В°F(-10 ~ 60В°C) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 2 Wire Leads |
| Weight | 0.838 lb(380.11 g) |
| Width | 38.00mm |
| Current Rating (Amps) | 0.900A |
| Static Pressure | 0.751 in H2O(187.0 Pa) |
| Частота вращения,об./мин. | 4000 |
| Производительность,м.куб./мин. | 181.3 |
| Voltage Range | 14 ~ 26.5VDC |
| Environmental Information | http://www.delta-fan.com/Download/Compliance/RoHS. |
Детали
| Бренд | Delta Electonics |
|---|
