Sanyo Denki

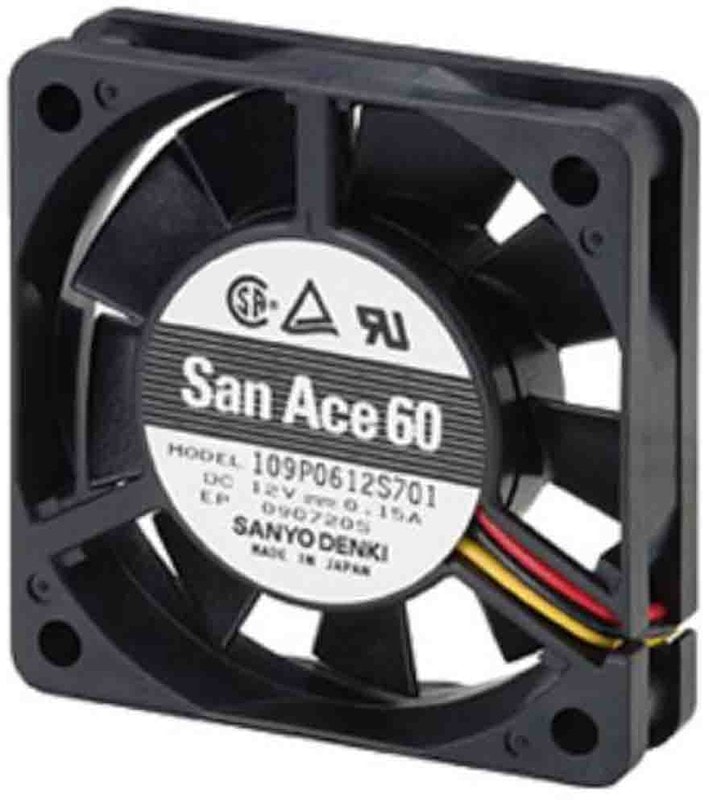

8006681908 109P0612S701, Fan Tubeaxial 12VDC Square — 60mm L x 60mm H Ball 17.0 CFM (0.476m³/min) 3 Wire Leads Hirschmann
2650,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 60mm L x 60mm H Ball 17.0 CFM (0.476mВі/min) 3 Wire Leads
| Потребляемая мощность, Вт | 1.8 |
| Air Flow | 17cfm |
| Fan Type | Tubeaxial |
| Mounting | Flange Mount |
| Series | San Ace 60-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 60×60 |
| Рабочее напряжение,В | 12 |
| Питание | 3pin |
| Product Category | DC Fan |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | Locked Rotor Protection, Speed Sensor(Tach) |
| Noise | 36.0dB(A) |
| Type | Axial |
| Approval Agency | CSA, TUV, UL |
| Lifetime @ Temp. | 40000 Hrs @ 60В°C |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | -4 ~ 158В°F(-20 ~ 70В°C) |
| Size / Dimension | Square-60mm L x 60mm H |
| Termination | 3 Wire Leads |
| Weight | 0.133 lb(60.33 g) |
| Width | 15.00mm |
| Current Rating (Amps) | 0.150A |
| Static Pressure | 0.236 in H2O(58.8 Pa) |
| Частота вращения,об./мин. | 5000 |
| Производительность,м.куб./мин. | 17 |
| AC or DC Operation | DC |
| Direction of Curve | Forward |
| Sensor Type | Pulse |
| Termination Type | Lead Wire |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| Video File | Summary of SanAce Cooling SystemsSanAce Server Coo |
| ECCN (US) | 4A994 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Pressure | 0.236inH2O |
| Minimum Operating Temperature (°C) | -20 |
| Shape | Square |
| Size (mm) | 60 X 60 X 15 |
| Voltage Range | 10.2 ~ 13.8VDC |
| Voltage Rating (V) | 12 |
| Power Rating (W) | 1.8 |
| Nominal Speed (r/min) | 5000 |
| Maximum Airflow (CFM) | 17 |
| Noise Level (dB) | 36 |
| Bearings | Ball |
| Line Current (A) | 0.15 |
| Operating Input Voltage Range (V) | 10.2 to 13.8 |
Детали
| Бренд | Sanyo Denki |
|---|
