NMB Technologies

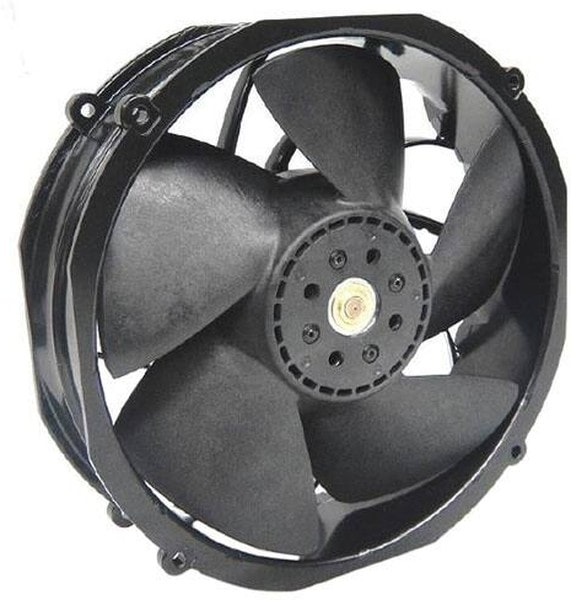

8006744904 R200A0-051-D0760, Fan Tubeaxial 48VDC Round — 200mm Dia Ball 783.0 CFM (21.92m³/min) 4 Wire Leads Hirschmann
44250,00 ₽
Описание
Fan Tubeaxial 48VDC Round — 200mm Dia Ball 783.0 CFM (21.92mВі/min) 4 Wire Leads
| Потребляемая мощность, Вт | 139.2 |
| Fan Type | Tubeaxial |
| Series | R200A |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 48 |
| Brand | NMB Technologies |
| Manufacturer | MinebeaMitsumi |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Locked Rotor Protection, Tachometer, PWM |
| Current Type | DC |
| Factory Pack Quantity: Factory Pack Quantity | 8 |
| Noise | 74.0dB(A) |
| Termination Style | Wire Leads-4 |
| Type | Tubeaxial |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Plastic |
| Material — Frame | Aluminum |
| Operating Temperature | -22 ~ 158В°F(-30 ~ 70В°C) |
| Size / Dimension | Round-200mm Dia |
| Termination | 4 Wire Leads |
| Weight | 2.6 lbs(1.2 kg) |
| Width | 51.00mm |
| Housing Material | Aluminum |
| Current Rating (Amps) | 2.9A |
| Static Pressure | 4.12 in H2O(1028.0 Pa) |
| Pressure Type | 4.12 in H2O |
| Частота вращения,об./мин. | 6500 |
| Производительность,м.куб./мин. | 783 |
| Voltage Range | 30 ~ 72VDC |
Детали
| Бренд | NMB Technologies |
|---|
