Orion Fans

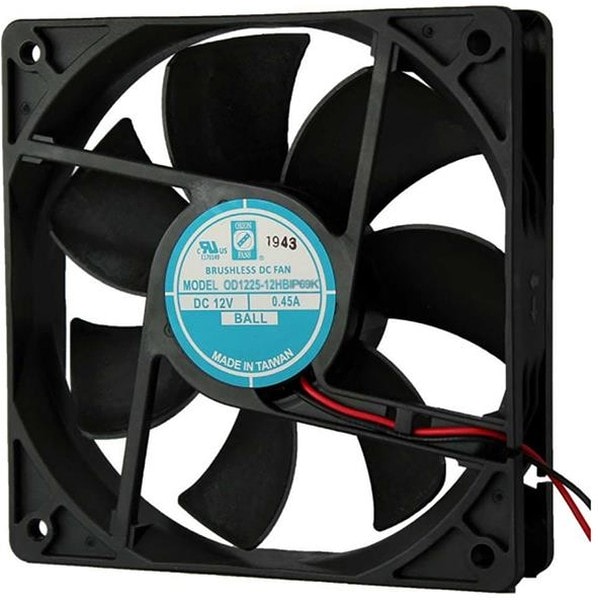

8006796039 OD1225-12HBIP69K, DC Fans DC Fan, 120x120x25mm, 12VDC, 120CFM, 0.45A, 42dBA, 3100RPM, Ball, Wire, IP69K Hirschmann
6890,00 ₽
Описание
IP69K-Rated AC & DC Fans
Orion Fans IP69K-Rated AC and DC Fans are an optimal solution for applications where fans may be exposed to contaminants, sanitation washdowns, and extreme temperatures. The IP69 rating ensures the fans are capable of withstanding high-temperature and high-pressure washdown environments. The K on the rating denotes the specific degree of protection for use in road vehicles as per ISO 20653. The available special functions include a tachometer, alarm, PWM, thermal speed control, and more. Orion Fans IP69K-Rated AC and DC Fans are ideal for applications such as oil and gas, appliances, industrial, automation, renewable energy, and more.
| Вес, г | 154 |
| Потребляемая мощность, Вт | 5.4 |
| Fan Type | Tubeaxial |
| Series | OD1225-IP69K-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 25 |
| Питание | 2pin |
| Brand | Orion Fans |
| Manufacturer | Orion Fans |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart |
| Current Type | DC |
| Factory Pack Quantity: Factory Pack Quantity | 10 |
| IP Rating | IP69K |
| Noise | 42.0dB |
| Termination Style | Wire Leads-2 |
| Type | Axial |
| Approval Agency | CE, cURus, TUV, UR |
| Lifetime @ Temp. | 60000 Hrs @ 35В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | -4 ~ 149В°F(-20 ~ 65В°C) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 2 Wire Leads |
| Width | 25.00mm |
| COO | TW |
| Housing Material | Polybutylene Terephthalate(PBT) |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Единица измерения | шт |
| Current Rating (Amps) | 0.450A |
| Ingress Protection | IP69K-Dust Tight, Water Resistant, Waterproof |
| Static Pressure | 0.24 in H2O(59.8 Pa) |
| Частота вращения,об./мин. | 3100 |
| Производительность,м.куб./мин. | 120 |
| Шум, дБA | 42 |
| Life | 60000 Hour |
| California Prop 65 | Warning Information |
Детали
| Бренд | Orion Fans |
|---|
