Orion Fans

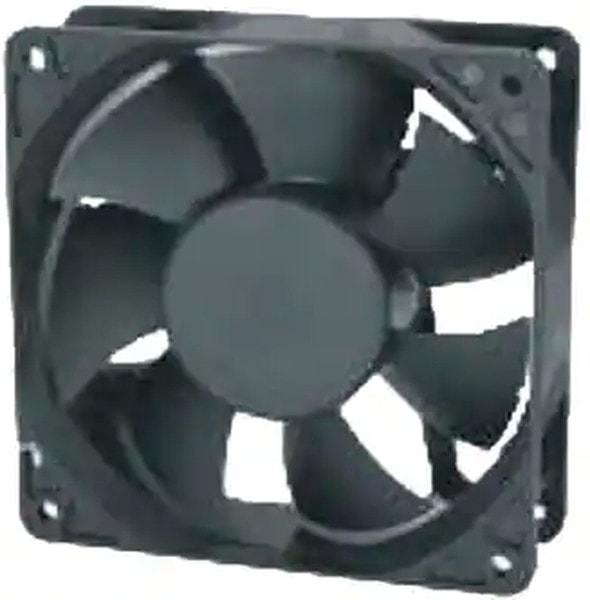

8006810615 OD1238-24HBIP69K, DC Fans DC Fan, 120x120x38mm, 24VDC, 124CFM, 0.23A, 44dBA, 2900RPM, Ball, Wire, IP69K Hirschmann
6630,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 120mm L x 120mm H Ball 124.0 CFM (3.472mВі/min) 2 Wire Leads
| Вес, г | 6 |
| Потребляемая мощность, Вт | 12 |
| Fan Type | Tubeaxial |
| Series | OD1238-IP69K-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 38 |
| Питание | 2pin |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart |
| Noise | 44.0dB(A) |
| Approval Agency | CE, cURus, TUV, UR |
| Lifetime @ Temp. | 65000 Hrs @ 45В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | -4 ~ 149В°F(-20 ~ 65В°C) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 2 Wire Leads |
| Width | 38.00mm |
| COO | TW |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Единица измерения | шт |
| Current Rating (Amps) | 0.230A |
| Ingress Protection | IP69K-Dust Tight, Water Resistant, Waterproof |
| Static Pressure | 0.47 in H2O(117.1 Pa) |
| Частота вращения,об./мин. | 2900 |
| Производительность,м.куб./мин. | 124 |
| Шум, дБA | 44 |
| California Prop 65 | Warning Information |
Детали
| Бренд | Orion Fans |
|---|
