Orion Fans

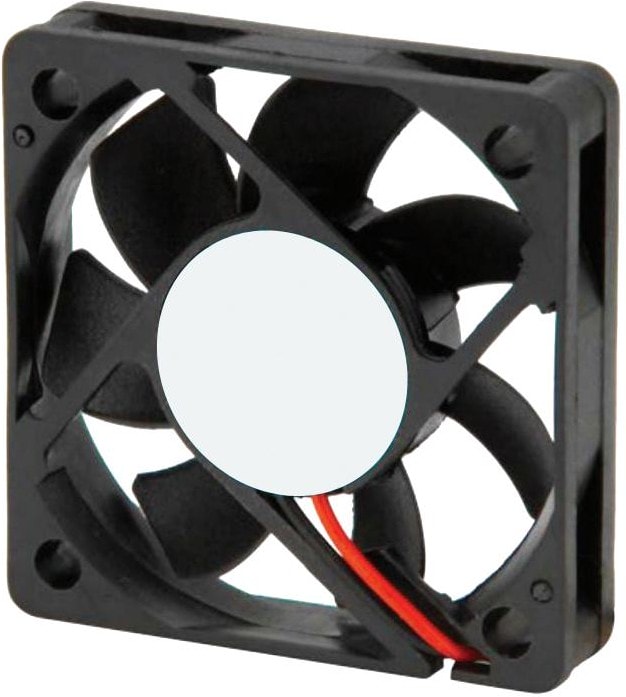

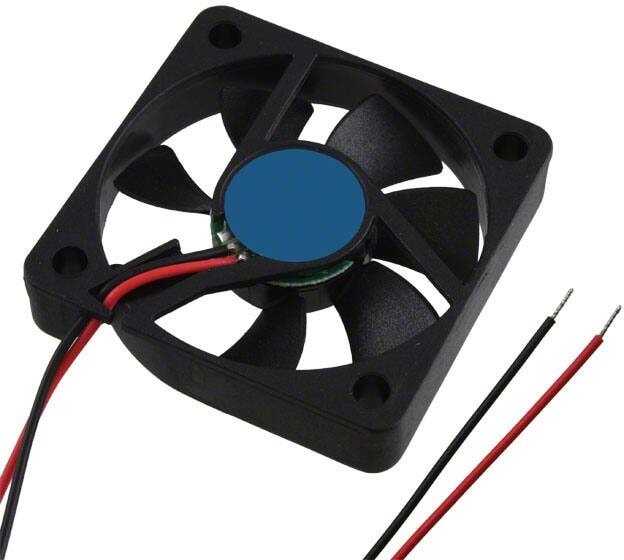

8006850549 OD5010-12LB, FAN AXIAL 50X10.5MM 12VDC WIRE Hirschmann
2820,00 ₽
Описание
Трубка вентилятора осевой, квадратный, 12 В постоянного тока — шарик 50 мм, высота 50 мм, 2 провода
| Fan Type | Tubeaxial |
| Series | OD5010-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 50×50 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 10 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Power Rating | 1.44W |
| Approval Agency | cURus |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Size / Dimension | Square-50mm L x 50mm H |
| Termination | 2 Wire Leads |
| Width | 10.50mm |
| Bearing Type | Ball Bearing |
| Current Rating | 120mA |
| Air Flow — CFM | 8.6CFM |
| External Depth | 10mm |
| Fan Frame Size | 50mm |
| Fan Frame Type | Square |
| Noise Rating | 25.4dBA |
| Power Connection Type | 2 Lead Wires |
| Product Range | OD5010 Series |
| Rated Speed | 4425rpm |
| Производительность,м.куб./мин. | 8.6 |
| Supply Voltage VDC | 12V |
Детали
| Бренд | Orion Fans |
|---|
