Mechatronics

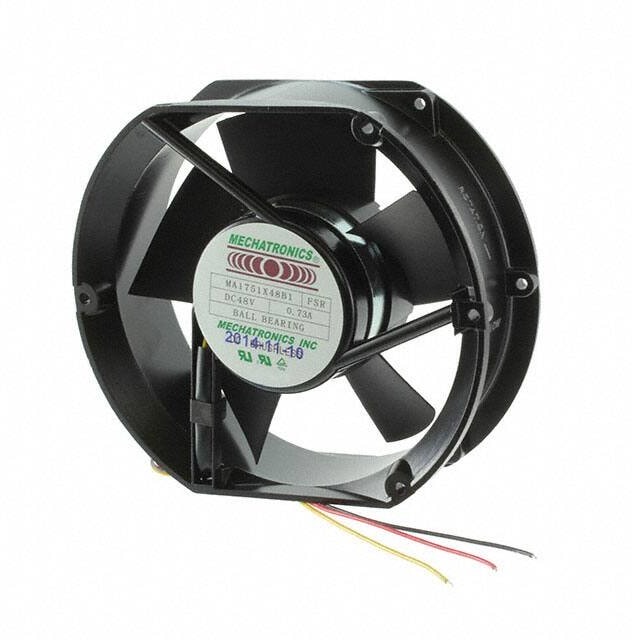

8006888578 MA1751E48B2-FSR-TTL, Fan Tubeaxial 48VDC Rectangular/Rounded — 172mm L x 150mm H Ball 269.2 CFM (7.54m³/min) 3 Wire Leads Hirschmann
7880,00 ₽
Описание
Fan Tubeaxial 48VDC Rectangular/Rounded — 172mm L x 150mm H Ball 269.2 CFM (7.54mВі/min) 3 Wire Leads
| Fan Type | Tubeaxial |
| Series | MA1751-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 172×150 |
| Рабочее напряжение,В | 48 |
| Питание | 3pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Locked Rotor Sensor, Thermal Overload Protector(T |
| Noise | 61.0dB(A) |
| Approval Agency | cUL, TUV, UL |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Aluminum |
| Size / Dimension | Rectangular/Rounded-172mm L x 150mm H |
| Termination | 3 Wire Leads |
| Weight | 1.7 lbs(771.1 g) |
| Width | 50.80mm |
| Current Rating (Amps) | 0.550A |
| Static Pressure | 0.67 in H2O(166.9 Pa) |
| Частота вращения,об./мин. | 3150 |
| Производительность,м.куб./мин. | 269.2 |
Детали
| Бренд | Mechatronics |
|---|
