Mechatronics

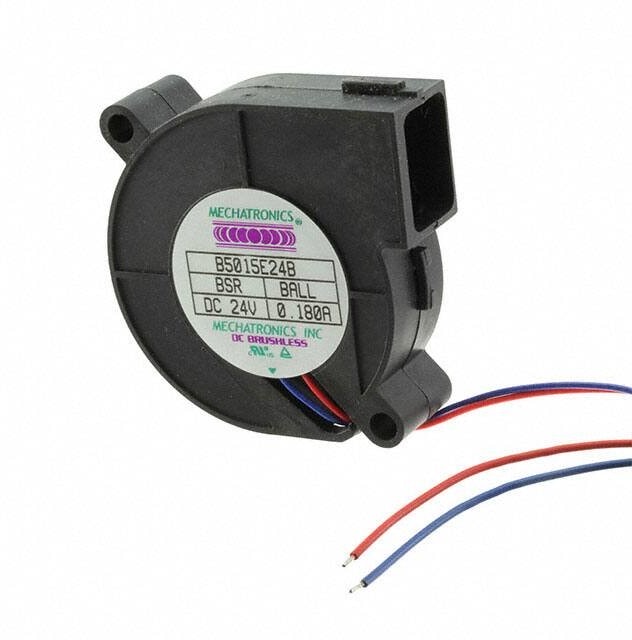

8006934958 B5015E24B-BSR, Fan Blower 24VDC Square/Rounded — 51mm L x 51mm H Ball 5.0 CFM (0.140m³/min) 2 Wire Leads Hirschmann
2980,00 ₽
Описание
Fan Blower 24VDC Square/Rounded — 51mm L x 51mm H Ball 5.0 CFM (0.140mВі/min) 2 Wire Leads
| Fan Type | Blower |
| Series | B5015-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 24 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6560 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Thermal Overload Protector(TOP) |
| Noise | 45.0dB(A) |
| Approval Agency | CE, cUL, TUV, UL |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Size / Dimension | Square/Rounded-51mm L x 51mm H |
| Termination | 2 Wire Leads |
| Weight | 0.062 lb(28.12 g) |
| Width | 15.70mm |
| Current Rating (Amps) | 0.180A |
| Static Pressure | 0.88 in H2O(219.2 Pa) |
| Частота вращения,об./мин. | 6500 |
| Производительность,м.куб./мин. | 5 |
Детали
| Бренд | Mechatronics |
|---|
