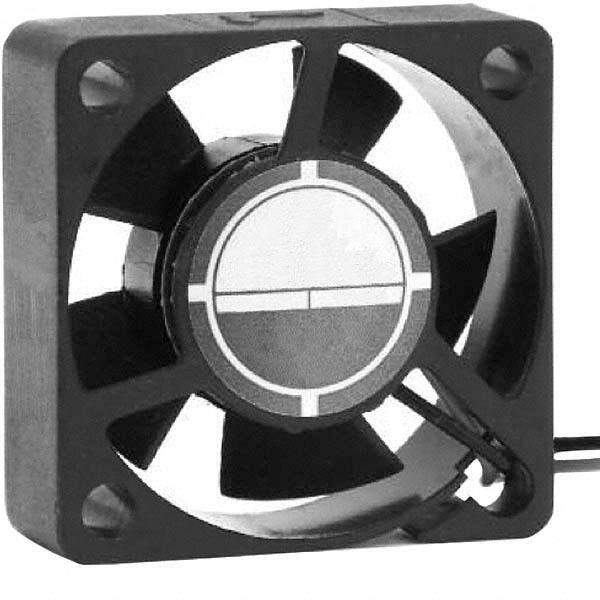

8006946323 OD3010-12MB, Fan Tubeaxial 12VDC Square — 30mm L x 30mm H Ball 4.0 CFM (0.112m³/min) 2 Wire Leads Hirschmann
2740,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 30mm L x 30mm H Ball 4.0 CFM (0.112mВі/min) 2 Wire Leads
| Fan Type | Tubeaxial |
| Series | OD3010-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 30×30 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 10 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Noise | 27.0dB |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 45В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-30mm L x 30mm H |
| Termination | 2 Wire Leads |
| Width | 10.20mm |
| Current Rating (Amps) | 0.090A |
| Static Pressure | 0.17 in H2O(42.3 Pa) |
| Частота вращения,об./мин. | 9000 |
| Производительность,м.куб./мин. | 4 |
| Шум, дБA | 27 |
| Voltage Range | 8 ~ 17VDC |
Детали
| Бренд | Orion Fans |
|---|
