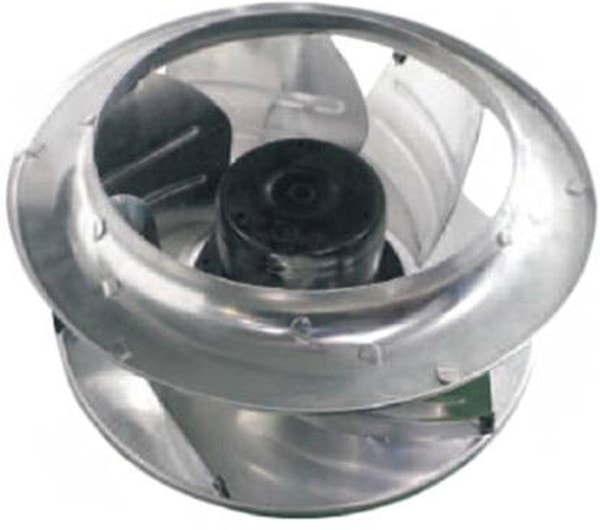

8006961451 MSI3116H48B1+7-BBR, Fan Motorized Impellers 48VDC Round — 315mm Dia Ball 1675.0 CFM (46.90m³/min) 3 Wire Leads Hirschmann
66850,00 ₽
Описание
Fan Motorized Impellers 48VDC Round — 315mm Dia Ball 1675.0 CFM (46.90mВі/min) 3 Wire Leads
| Fan Type | Motorized Impellers |
| Series | MSI3116-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 315×315 |
| Рабочее напряжение,В | 48 |
| Питание | 3pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6560 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Box |
| RoHS Status | RoHS Compliant |
| Features | Auto Restart, Speed Sensor(Tach), Voltage Control |
| Noise | 76.0dB(A) |
| Approval Agency | CE, cUL, TUV, UL |
| Material — Blade | Aluminum |
| Size / Dimension | Round-315mm Dia |
| Termination | 3 Wire Leads |
| Weight | 6.6 lbs(3 kg) |
| Width | 161.0mm |
| Current Rating (Amps) | 8.80A |
| Static Pressure | 3.15 in H2O(784.7 Pa) |
| Частота вращения,об./мин. | 2100 |
| Производительность,м.куб./мин. | 1675 |
Детали
| Бренд | Mechatronics |
|---|
