Sanyo Denki

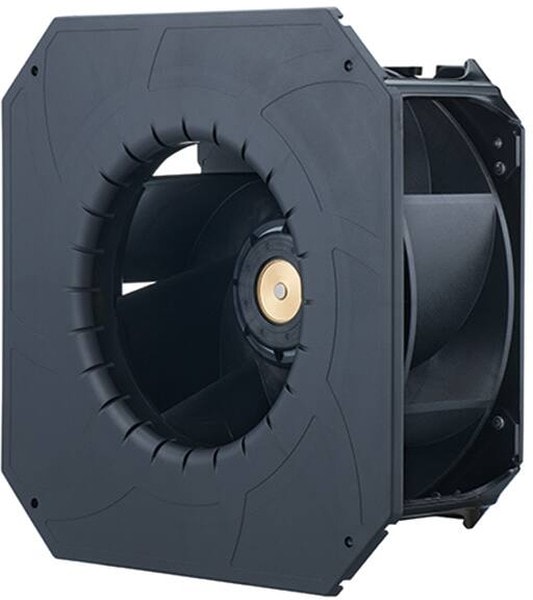

8006984948 9B1TS48P0G001, Fan Blower, Centrifugal 48VDC Square — 270mm L x 270mm H Ball 992.0 CFM (27.78m³/min) 4 Wire Leads Hirschmann
81290,00 ₽
Описание
Fan Blower, Centrifugal 48VDC Square — 270mm L x 270mm H Ball 992.0 CFM (27.78mВі/min) 4 Wire Leads
| Потребляемая мощность, Вт | 175.2 |
| Fan Type | Blower, Centrifugal |
| Series | San Ace C225-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 270×270 |
| Рабочее напряжение,В | 48 |
| Питание | 4pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor |
| Noise | 74.5dB(A) |
| Approval Agency | CSA, TUV, UL |
| Lifetime @ Temp. | 40000 Hrs @ 60В°C |
| Material — Blade | Plastic |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 140В°F(-20 ~ 60В°C) |
| Size / Dimension | Square-270mm L x 270mm H |
| Termination | 4 Wire Leads |
| Weight | 4.2 lbs(1.9 kg) |
| Width | 119.0mm |
| Current Rating (Amps) | 3.65A |
| Static Pressure | 3.46 in H2O(861.8 Pa) |
| Частота вращения,об./мин. | 3550 |
| Производительность,м.куб./мин. | 992 |
| Voltage Range | 36 ~ 72VDC |
Детали
| Бренд | Sanyo Denki |
|---|
