Mechatronics

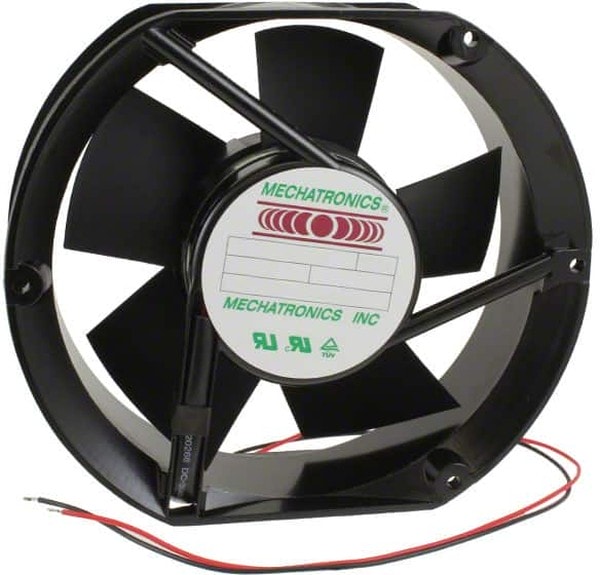

8006998490 MA1751E12B-FSR, Fan Tubeaxial 12VDC Rectangular/Rounded — 172mm L x 150mm H Ball 269.2 CFM (7.54m³/min) 2 Wire Leads Hirschmann
14750,00 ₽
Описание
Fan Tubeaxial 12VDC Rectangular/Rounded — 172mm L x 150mm H Ball 269.2 CFM (7.54mВі/min) 2 Wire Leads
| Fan Type | Tubeaxial |
| Series | MA1751-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 172×150 |
| Рабочее напряжение,В | 12 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Thermal Overload Protector(TOP) |
| Noise | 61.0dB(A) |
| Approval Agency | cUL, TUV, UL |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Aluminum |
| Size / Dimension | Rectangular/Rounded-172mm L x 150mm H |
| Termination | 2 Wire Leads |
| Weight | 1.7 lbs(771.1 g) |
| Width | 50.80mm |
| COO | CN |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Единица измерения | шт |
| Current Rating (Amps) | 2.20A |
| Static Pressure | 0.67 in H2O(166.9 Pa) |
| Частота вращения,об./мин. | 3150 |
| Производительность,м.куб./мин. | 269.2 |
Детали
| Бренд | Mechatronics |
|---|
