NMB Technologies

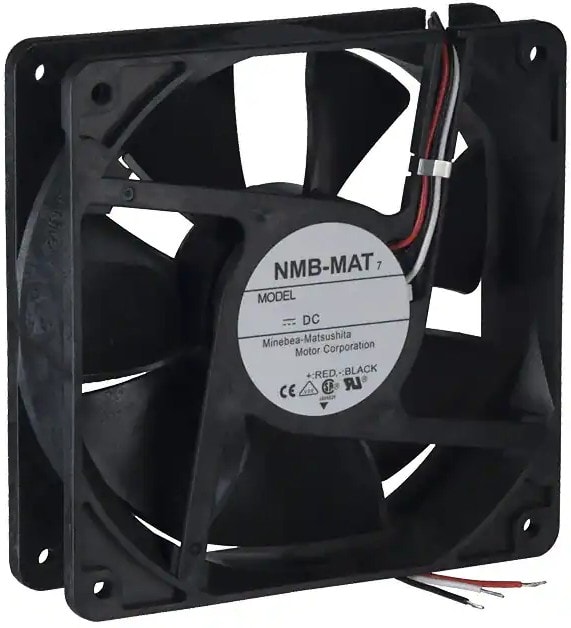

8006999491 4712KL-07W-B49-P00, Fan Tubeaxial 48VDC Square — 119mm L x 119mm H Ball 112.0 CFM (3.14m³/min) 3 Wire Leads Hirschmann
5180,00 ₽
Описание
Fan Tubeaxial 48VDC Square — 119mm L x 119mm H Ball 112.0 CFM (3.14mВі/min) 3 Wire Leads
| Потребляемая мощность, Вт | 10.1 |
| Fan Type | Tubeaxial |
| Series | 4712KL |
| Тип подшипника | Ball |
| Размеры рамы,мм | 119×119 |
| Рабочее напряжение,В | 48 |
| Питание | 3pin |
| Brand | NMB Technologies |
| Manufacturer | NMB Technologies |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Locked Rotor Sensor |
| Current Type | DC |
| Factory Pack Quantity: Factory Pack Quantity | 10 |
| Noise | 47.0dB |
| Termination Style | Wire Leads-3 |
| Type | Tubeaxial |
| Approval Agency | CE, CSA, UL, VDE |
| Lifetime @ Temp. | 100000 Hrs @ 25В°C |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-119mm L x 119mm H |
| Termination | 3 Wire Leads |
| Weight | 0.529 lb(239.95 g) |
| Width | 32.00mm |
| Housing Material | Plastic |
| Current Rating (Amps) | 0.210A |
| Static Pressure | 0.329 in H2O(82.0 Pa) |
| Part # Aliases | 11932KA-48M-EL-00 |
| Частота вращения,об./мин. | 3100 |
| Производительность,м.куб./мин. | 112 |
| Tradename | NMB-MAT |
| Voltage Range | 28 ~ 55.2VDC |
Детали
| Бренд | NMB Technologies |
|---|
