Sanyo Denki

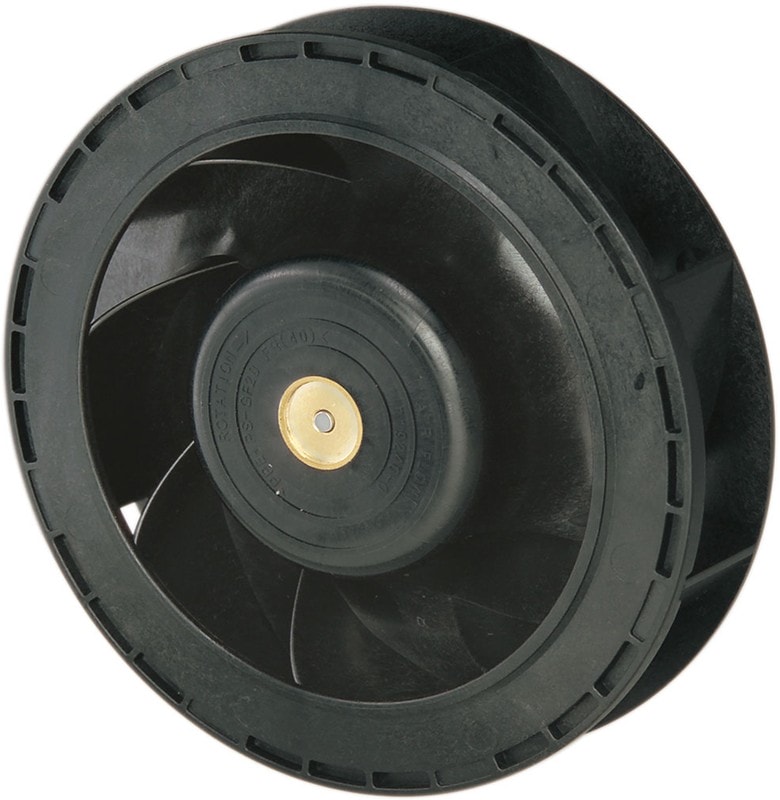

8007001471 9TM24P4H01, Fan Motorized Impellers 24VDC Round — 100mm Dia Ball 62.5 CFM (1.75m³/min) 4 Wire Leads Hirschmann
15420,00 ₽
Описание
Centrifugal Fans blow air perpendicular to the inlet direction. They particularly excel in static pressure, and are ideal for cooling high mounting density equipment including servers storage systems, and heat exchangers.
| Air Flow | 62.5cfm |
| Series | 9T Type |
| Размеры рамы,мм | 100×100 |
| Рабочее напряжение,В | 24 |
| Питание | 4pin |
| Brand | Sanyo Denki |
| Manufacturer | Sanyo Denki |
| Product Category | Blowers & Centrifugal Fans |
| Product Type | Centrifugal Fans |
| Subcategory | Fans, Blowers & Accessories |
| Features | Tachometer, PWM |
| Current Type | DC |
| Factory Pack Quantity: Factory Pack Quantity | 20 |
| Termination Style | Wire Leads |
| Type | Centrifugal |
| Width | 100mm |
| Housing Material | Aluminum |
| Static Pressure | 560Pa |
| Pressure Type | 2.25 in H2O |
| Blower Type | Centrifugal |
| Производительность,м.куб./мин. | 62.5 |
| Tradename | San Ace C100 |
| AC or DC Operation | DC |
| Direction of Curve | Forward |
| Mounting hole diameter | 4.5mm |
| Horizontal Hole Spacing | 56mm |
| Mounting Hole Spacing | 56mm |
| Sensor Type | PWM |
| Vertical Hole Spacing | 56mm |
| Termination Type | Lead Wire |
| Inlet Diameter | 74mm |
| Outlet Diameter | 0 |
Детали
| Бренд | Sanyo Denki |
|---|
