Comair Rotron

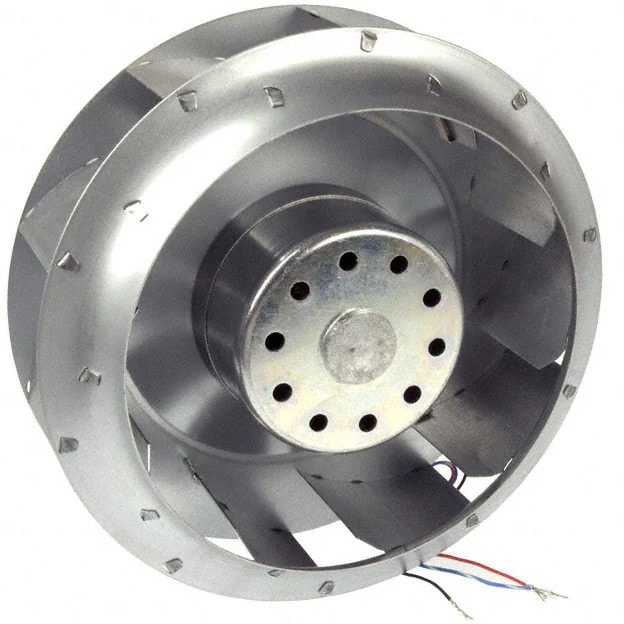

8007005281 19039848A, Fan Motorized Impellers 24VDC Round — 175mm Dia Ball 275.0 CFM (7.70m³/min) 3 Wire Leads Hirschmann
24630,00 ₽
Описание
Fan Motorized Impellers 24VDC Round — 175mm Dia Ball 275.0 CFM (7.70mВі/min) 3 Wire Leads
| Потребляемая мощность, Вт | 30.5 |
| Fan Type | Motorized Impellers |
| Series | Diplomat-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 175×175 |
| Рабочее напряжение,В | 24 |
| Питание | 3pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6560 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| Features | Auto Restart, Locked Rotor Protection, Speed Senso |
| Noise | 65.0dB(A) |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp. | 55000 Hrs @ 40В°C |
| Material — Blade | Metal |
| Material — Frame | Aluminum |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Round-175mm Dia |
| Termination | 3 Wire Leads |
| Weight | 2.5 lbs(1.1 kg) |
| Width | 68.58mm |
| Current Rating (Amps) | 1.27A |
| Static Pressure | 1.06 in H2O(264.0 Pa) |
| Частота вращения,об./мин. | 2850 |
| Производительность,м.куб./мин. | 275 |
| Voltage Range | 16 ~ 32VDC |
Детали
| Бренд | Comair Rotron |
|---|
