Orion Fans

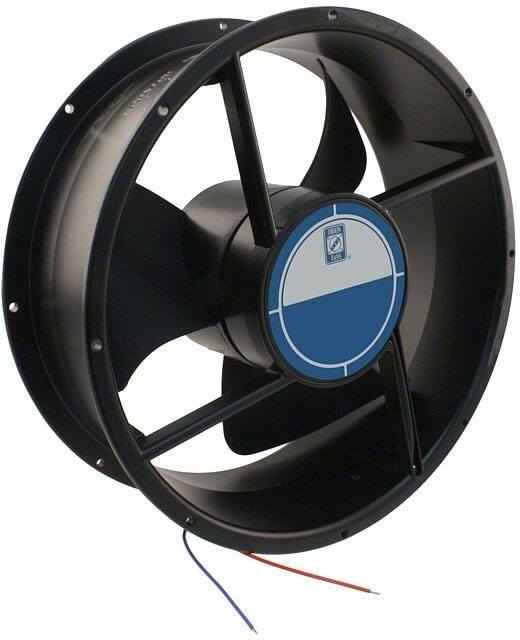

8007249340 OD254AP-12HB, DC Fans DC Fan, 254x89mm Round, 12VDC, 830CFM, 5.4A, 60dBA, 2400RPM, Dual Ball, Leads Hirschmann
26730,00 ₽
Описание
Fan Tubeaxial 12VDC Round — 254mm Dia Ball 830.0 CFM (23.24mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 65 |
| Fan Type | Tubeaxial |
| Series | OD254-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 254×254 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 89 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart |
| Noise | 60.0dB |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 40000 Hrs @ 60В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 167В°F(-20 ~ 75В°C) |
| Size / Dimension | Round-254mm Dia |
| Termination | 2 Wire Leads |
| Width | 89.00mm |
| Current Rating (Amps) | 5.4A |
| Static Pressure | 0.78 in H2O(194.3 Pa) |
| Частота вращения,об./мин. | 2400 |
| Производительность,м.куб./мин. | 830 |
| Voltage Range | 9 ~ 13VDC |
Детали
| Бренд | Orion Fans |
|---|
