Sanyo Denki

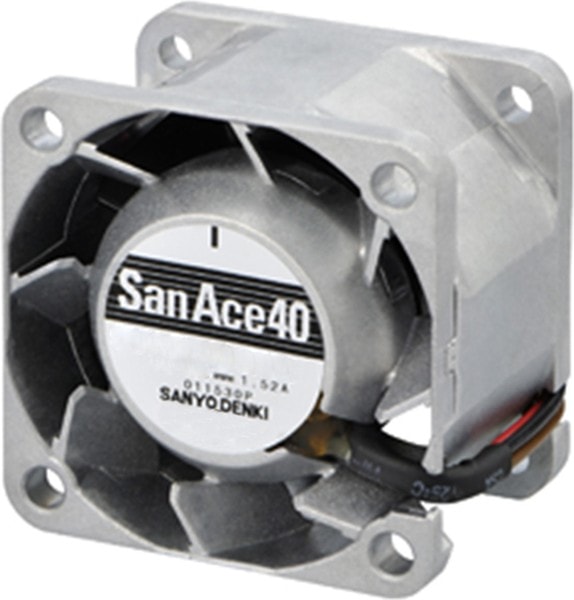

8007300989 9HV0412P3K001, DC Fans Fan, 40x40x28mm, 12VDC, 29.3CFM, High Static Pressure, Ribless, Ball, Tach/PWM Hirschmann
5440,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 40mm L x 40mm H Ball 29.3 CFM (0.820m³/min) 4 Wire Leads
| Fan Type | Tubeaxial |
| Mounting | Flange Mount |
| Special Features | High Static Pressure |
| Размеры рамы,мм | 40×40 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 28 |
| Product Category | DC Fan |
| Features | PWM Control, Speed Sensor(Tach) |
| Noise | 65.0dB(A) |
| Type | Axial |
| Approval Agency | CSA, TUV, UL |
| Operating Temperature | -4 ~ 140°F(-20 ~ 60°C) |
| Termination | 4 Wire Leads |
| Width | 28.00mm |
| Static Pressure | 4.42 in H2O(1100.0 Pa) |
| Производительность,м.куб./мин. | 29.3 |
| HTS | 8414.59.15.00 |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Pressure | 4.42inH2O |
| Minimum Operating Temperature (°C) | -20 |
| Shape | Square |
| Size (mm) | 40 X 40 X 28 |
| Voltage Rating (V) | 12 |
| Power Rating (W) | 18.3 |
| Nominal Speed (r/min) | 25000 |
| Maximum Airflow (CFM) | 29.3 |
| Noise Level (dB) | 65 |
| Bearings | Ball |
| Line Current (A) | 1.52 |
| Operating Input Voltage Range (V) | 10.8 to 12.6 |
Детали
| Бренд | Sanyo Denki |
|---|
