Sanyo Denki

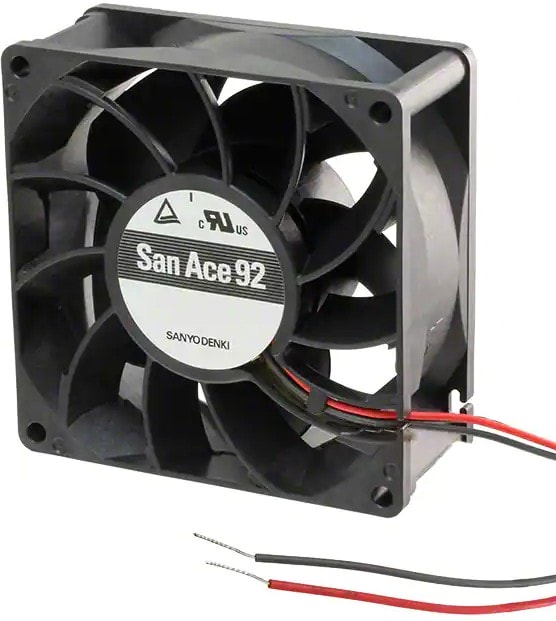

8007344220 9S0912L402, DC Fans DC Axial Fan, 92x92x25mm, 12VDC, Silent Series Hirschmann
4060,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 92mm L x 92mm H Ball 29.3 CFM (0.820mВі/min) 2 Wire Leads
| Вес, г | 25 |
| Fan Type | Tubeaxial |
| Series | San Ace 92-> |
| Размеры рамы,мм | 92×92 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 25 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | Locked Rotor Protection |
| Noise | 17.0dB(A) |
| Approval Agency | CSA, TUV, UL |
| Lifetime @ Temp. | 40000 Hrs @ 60В°C |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-92mm L x 92mm H |
| Termination | 2 Wire Leads |
| Weight | 0.222 lb(100.7 g) |
| Width | 25.00mm |
| Current Rating (Amps) | 0.070A |
| Static Pressure | 0.053 in H2O(13.2 Pa) |
| Video File | Summary of SanAce Cooling SystemsSanAce Server Coo |
| Voltage Range | 6 ~ 13.8VDC |
Детали
| Бренд | Sanyo Denki |
|---|
