Sanyo Denki

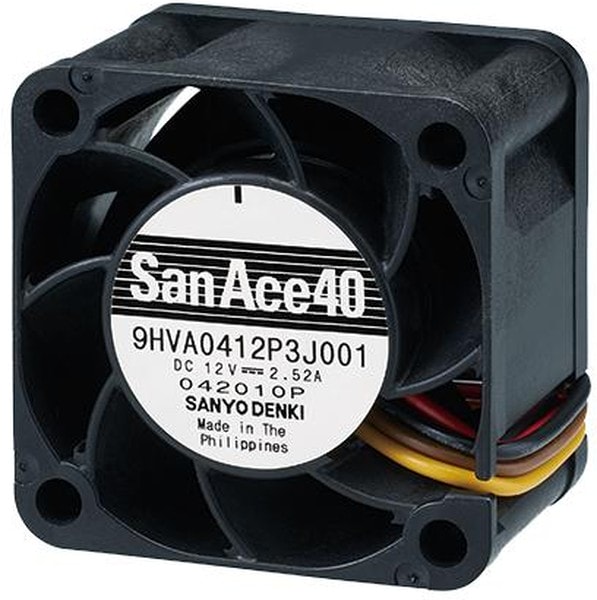

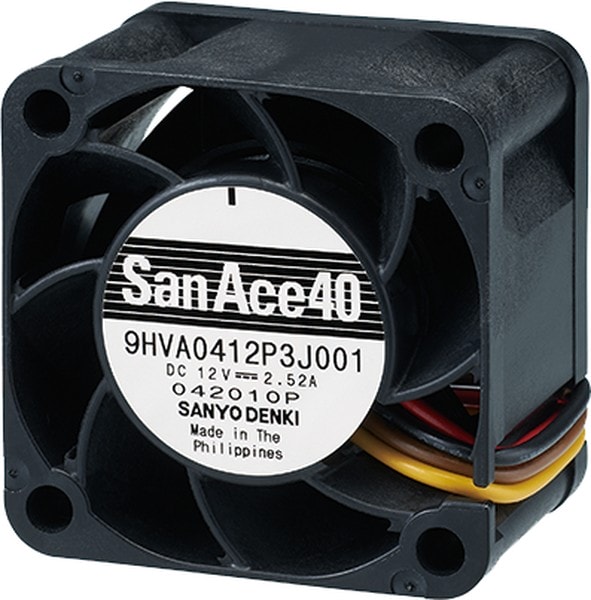

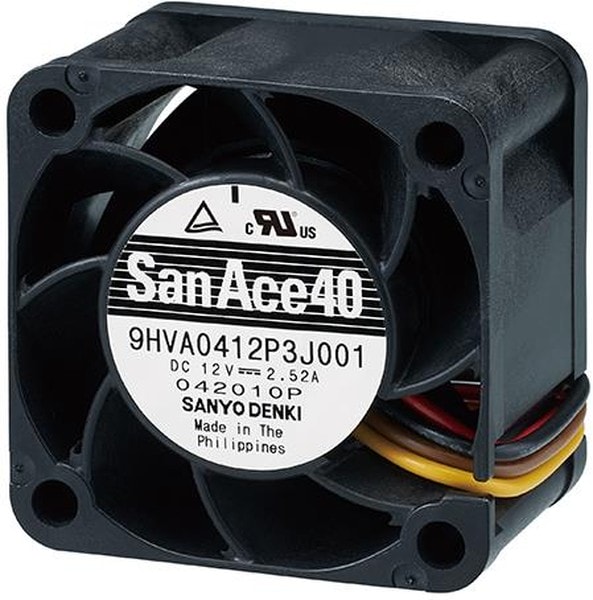

8007480998 9HVA0412P3J001, DC Fans Axial Fan, 40x40x28mm, 12VDC, 37.1CFM, High Static Pressure, Tach/PWM Hirschmann
7150,00 ₽
Описание
San Ace 9HV High Static Pressure DC Fans
Sanyo Denki San Ace 9HV High Static Pressure DC Fans are industry-leading high-performance cooling fans that are optimally designed for ultra-high static pressure applications. This line of fans offers a variety of advantages for applications such as air purification, servers and storage, telecommunications, and power supplies. They are offered in various sizes and thicknesses. Sanyo Denki 9HV series fans are designed with the goal of combined blade shape and static guide vane optimization. Upgraded designs allow these fans to provide an increase in maximum airflow and maximum static pressure P-Q curve performance, which is ideal for high-density applications.
| Вес, г | 57 |
| Потребляемая мощность, Вт | 31.2 |
| Air Flow | 37.1cfm |
| Series | 9HVA Type |
| Тип подшипника | Ball |
| Размеры рамы,мм | 40×40 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 28 |
| Питание | 4pin |
| Brand | Sanyo Denki |
| Factory Pack Quantity | 126 |
| Manufacturer | Sanyo Denki |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| HTSUS | 8414596590 |
| RoHS Status | RoHS Compliant |
| Features | Tachometer, PWM |
| Airflow | 37.1 CFM(1.05 m3/min) |
| Current Type | DC |
| Factory Pack Quantity: Factory Pack Quantity | 63 |
| Noise | 71 dBA |
| Operating Supply Voltage | 12 VDC |
| Power Rating | 31.2 W |
| Termination Style | Wire Leads-4 |
| Type | Axial |
| Width | 40mm |
| Housing Material | Plastic |
| speed | 38000 RPM |
| Bearing Type | Ball |
| Ток,А | 2.6 |
| Частота вращения,об./мин. | 38000 |
| Производительность,м.куб./мин. | 37.1 |
| Шум, дБA | 71 |
| Tradename | San Ace 40 |
| AC or DC Operation | DC |
| Линейка продукции | San Ace 40 9HVA |
| Поток воздуха — куб.фут/мин | 37.1фут³/мин |
| Тип корпуса вентилятора | Square |
| Тип Подключения Питания | 4 Провода, ШИМ управление, Выход Датчика |
| Тип Тока | DC(Постоянный Ток) |
| Life | 30000 Hour |
Детали
| Бренд | Sanyo Denki |
|---|
