Texas Instruments

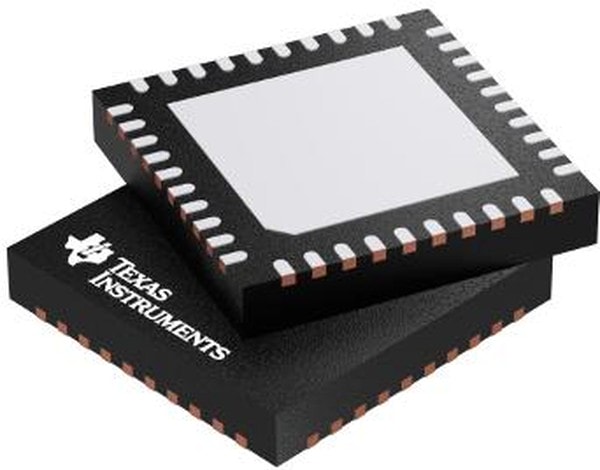

8007632011 CDCLVD1212RHAT, Clock Fanout Buffer (Distribution), Multiplexer IC 2:12 800 MHz 40-VFQFN Exposed Pad Hirschmann
2170,00 ₽
Описание
| Mounting | Surface Mount |
| Packaging | Tape and Reel |
| Type | Fanout Buffer |
| HTS | 8542.39.00.60 |
| Automotive | No |
| Part Status | Active |
| PPAP | No |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Absolute Propagation Delay Time (ns) | 2.5 |
| Maximum Operating Supply Voltage (V) | 2.625 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 2.5@2.375V to 2.625V |
| Minimum Operating Supply Voltage (V) | 2.375 |
| Number of Outputs per Chip | 12 |
| PCB changed | 40 |
| Pin Count | 40 |
| Supplier Package | VQFN EP |
| Typical Operating Supply Voltage (V) | 2.5 |
| Lead Shape | No Lead |
| Standard Package Name | QFN |
| EDA / CAD Models | CDCLVD1212RHAT by Ultra Librarian |
| Fanout | 1:12 |
| Input Logic Level | LVCMOS|LVDS|LVPECL |
| Maximum Input Frequency (MHz) | 800 |
| Output Logic Level | LVDS |
| Package Height | 0.95(Max) |
| Package Length | 6.15(Max) |
| Package Width | 6.15(Max) |
| Supplier Temperature Grade | Industrial |
Детали
| Бренд | Texas Instruments |
|---|
