Sanyo Denki

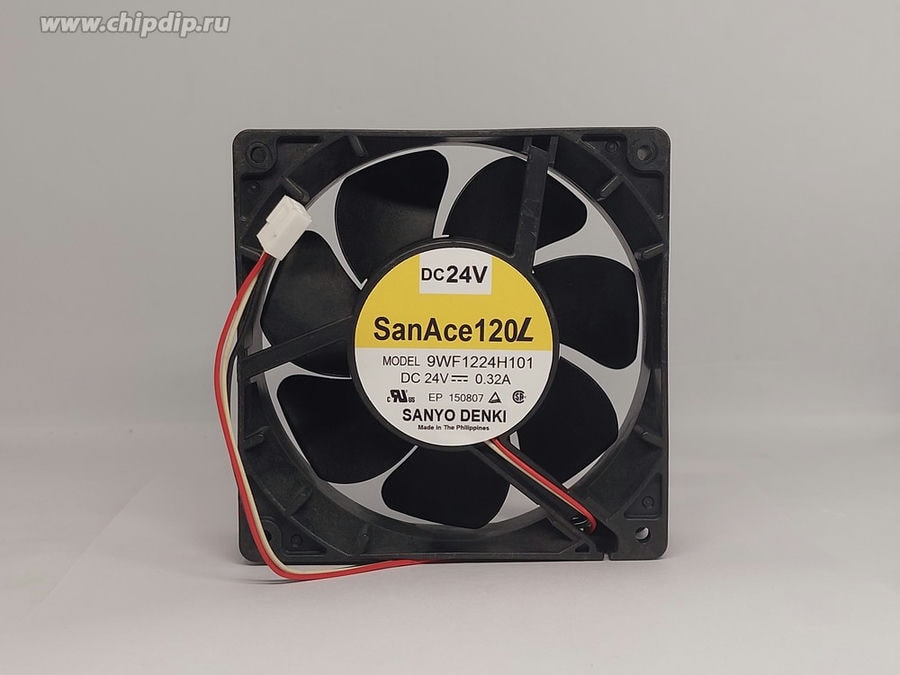

8007682110 Вентилятор Sanyo Denki San Ace 120L 9WF1224H101 24V DC 0.32A 120X38 3pin Hirschmann
6400,00 ₽
Описание

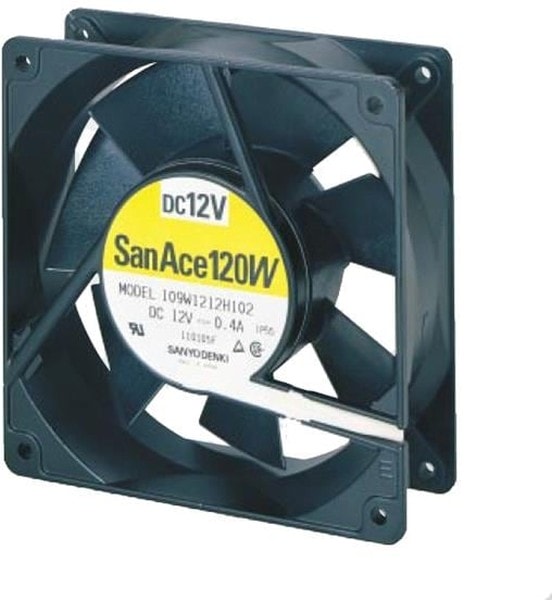

9W Type Splash-Proof Fans
Sanyo Denki 9W-Type Splash-Proof Fans are ideal as cooling equipment for outdoor use with IP54, IP55, or IP68 waterproof capability, a silicon coating, and special housing that prevents water from reaching the motor. The Sanyo Denki 9W-Type fans are available in various sizes (40mm x 20mm to 172mm) and shapes, including square, circular, and side-cut. Some models operate as quietly as 28dbA. Life expectancy ranges from 40.000 hours to 100.000 hours, while airflow ranges from 7.7CFM to 545.89CFM, depending on the model.
| Вес, г | 398 |
| Потребляемая мощность, Вт | 7.68 |
| Air Flow | 118 CFM(3.30m³/min) |
| Fan Type | Tubeaxial |
| Series | 9WF Type |
| Тип подшипника | Ball |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 38 |
| Питание | 3pin |
| Brand | Sanyo Denki |
| Manufacturer | Sanyo Denki |
| Packaging | Bulk |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| Features | Speed Sensor(Tach) |
| Current Type | DC |
| Factory Pack Quantity: Factory Pack Quantity | 21 |
| IP Rating | IP55 |
| Noise | 46.0dB(A) |
| Termination Style | Wire Leads-3 |
| Type | Axial |
| Approval Agency | CSA, TUV, UL |
| Operating Temperature | -4 ~ 158°F(-20 ~ 70°C) |
| Termination | 3 Wire Leads |
| Width | 38.00mm |
| Housing Material | Plastic |
| Static Pressure | 0.4 in H2O(99.6 Pa) |
| Bearing Type | Ball |
| Part # Aliases | 2138703 96M7593 |
| Pressure Type | 10 mmAq |
| Частота вращения,об./мин. | 3100 |
| Производительность,м.куб./мин. | 3.34 |
| Шум, дБA | 46 |
| Power (Watts) | 7.68 W |
| RPM | 3100 RPM |
| Voltage — Rated | 24VDC |
| Tradename | San Ace 120WF |
| Compliance | CSA; TUV; UL |
| Разъём питания, Pin | 3pin |
Детали
| Бренд | Sanyo Denki |
|---|
